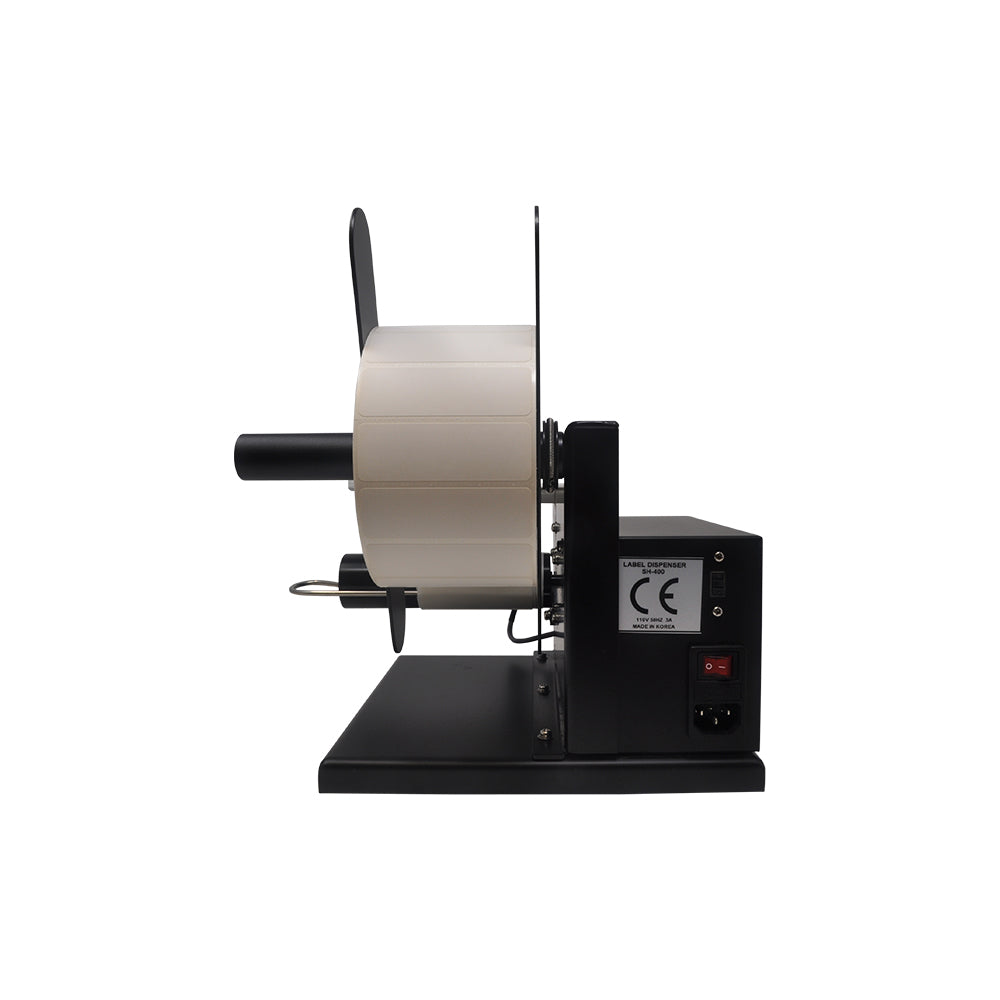

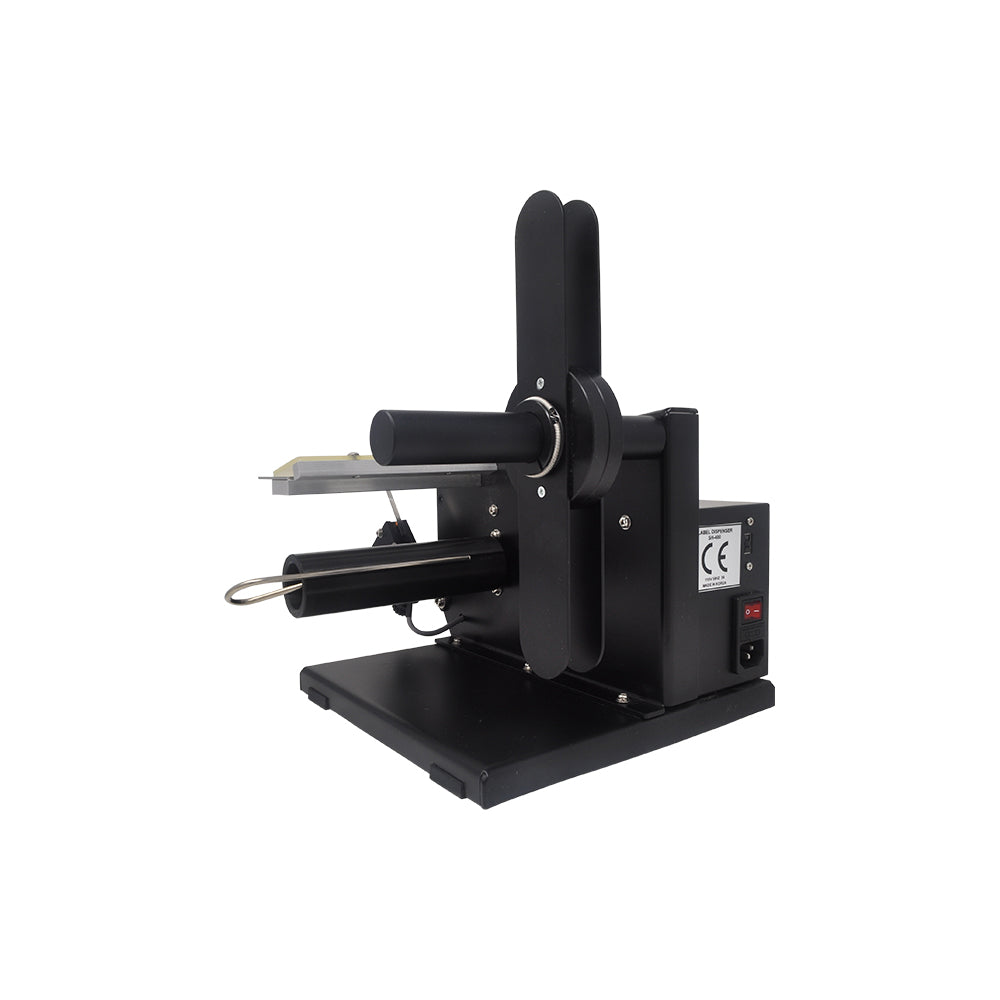

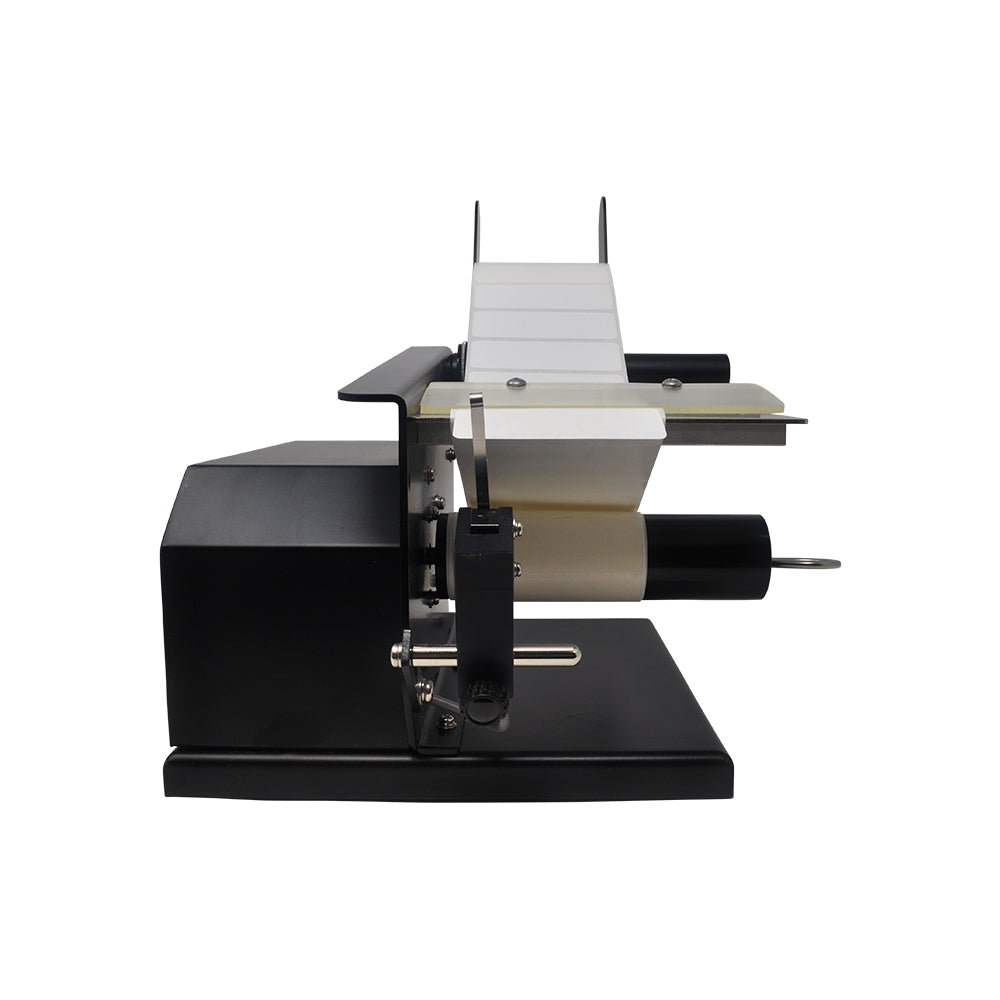

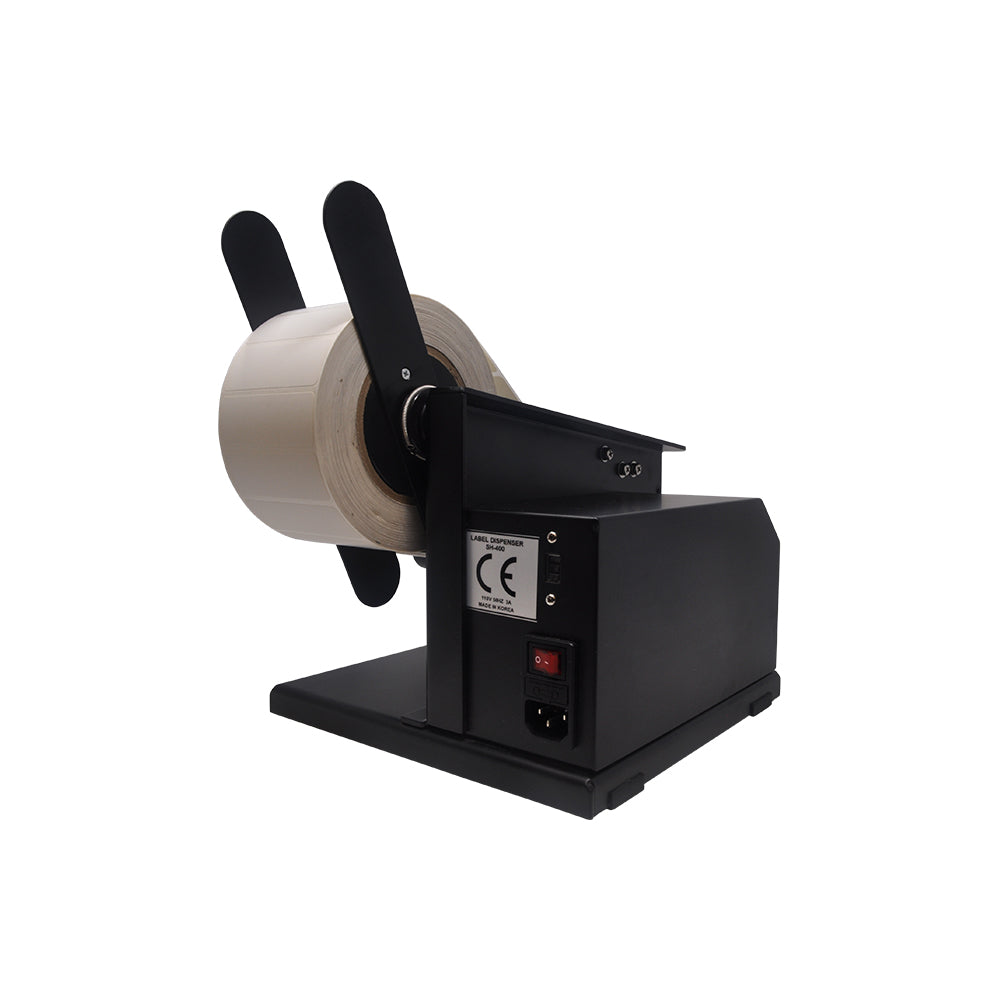

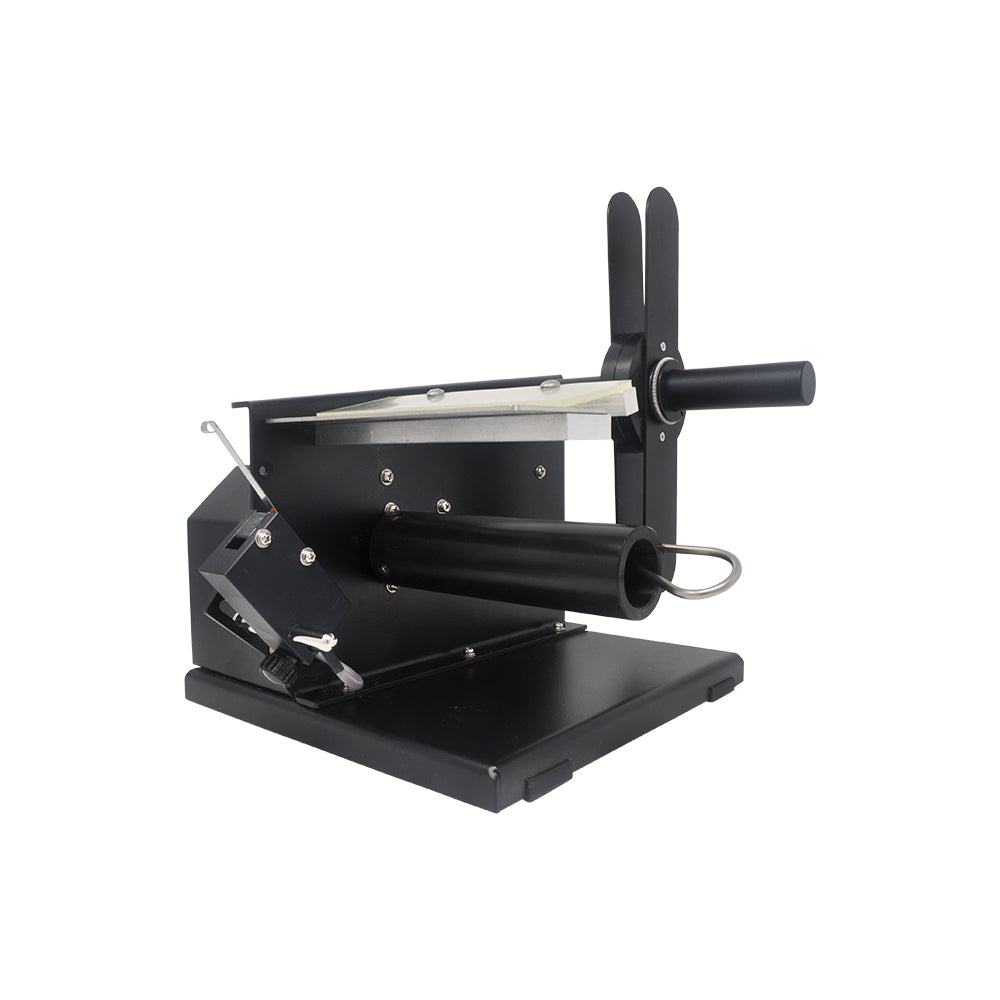

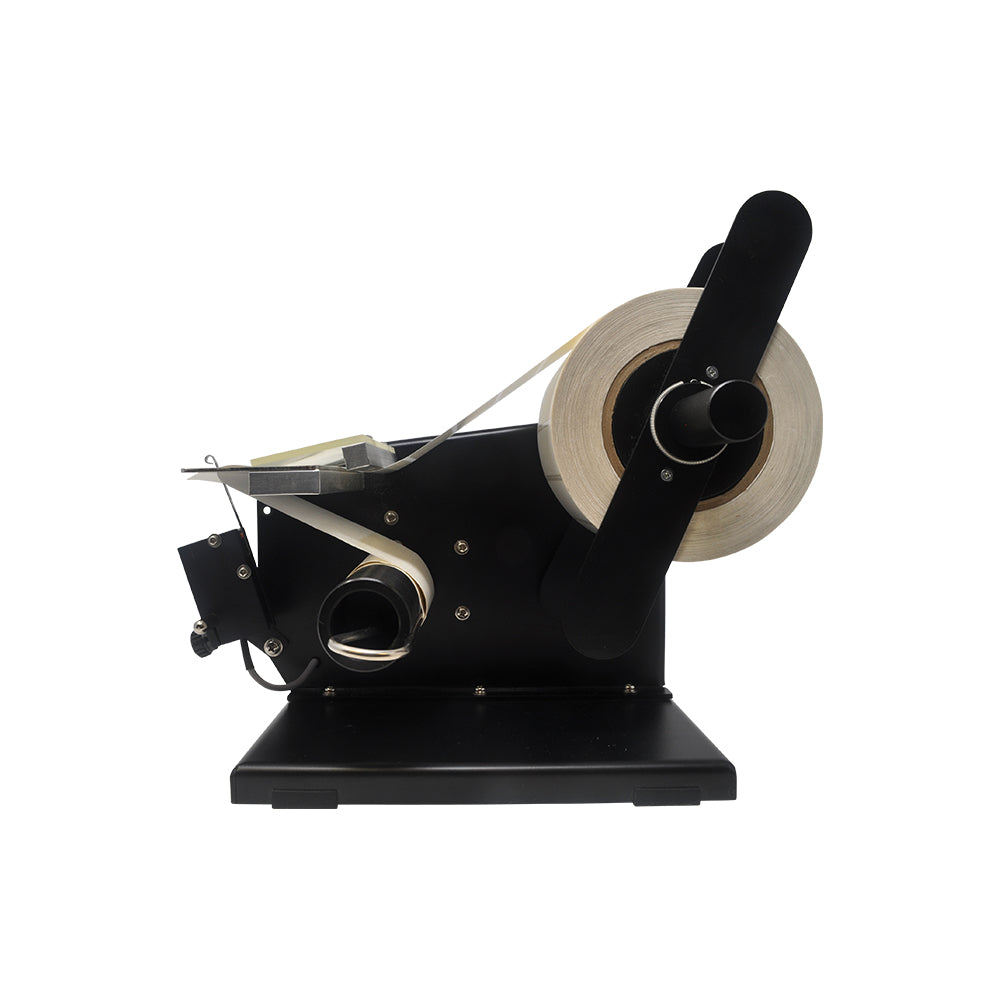

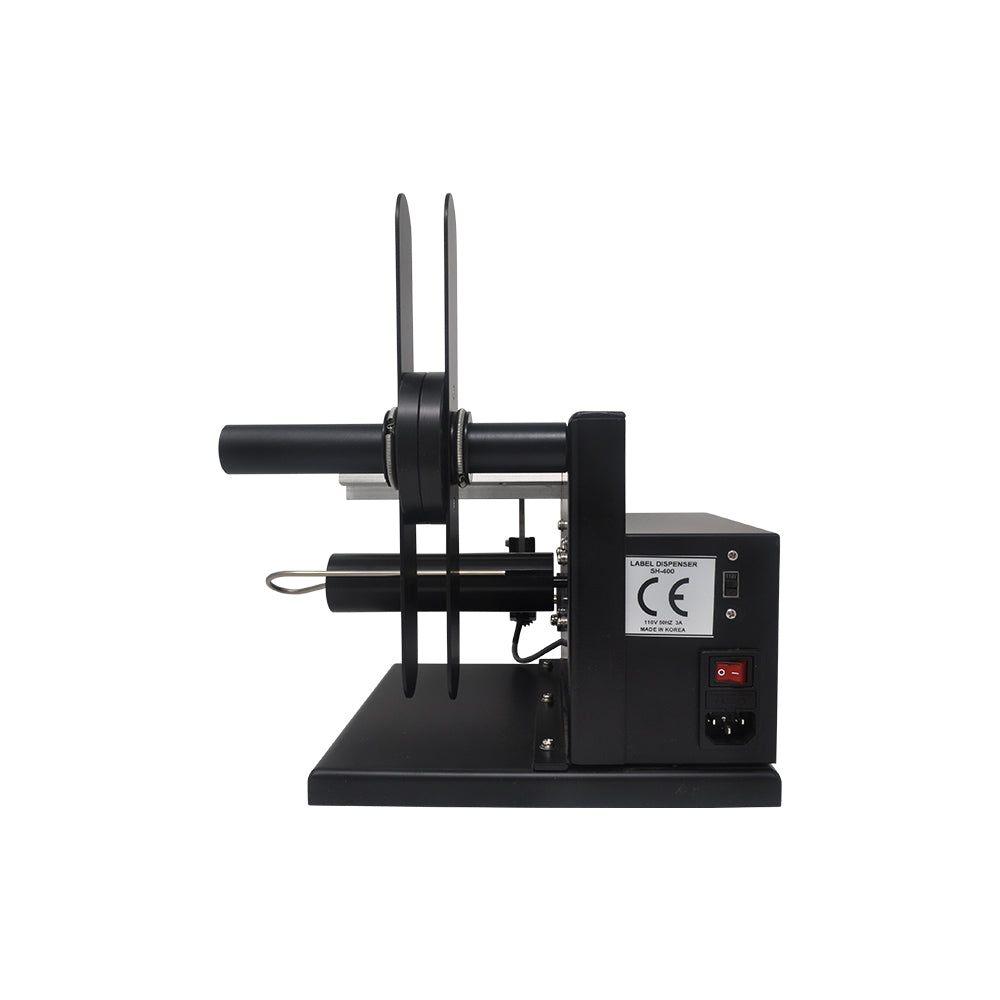

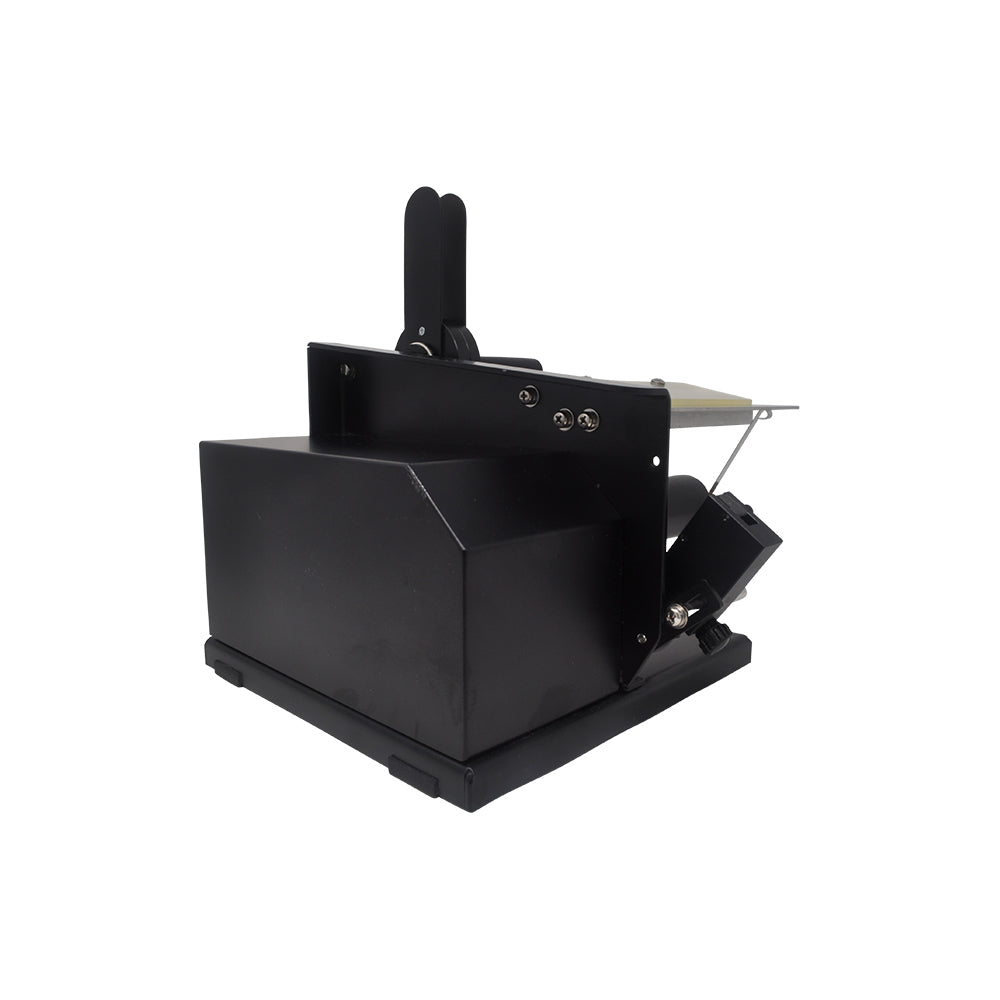

SH-400 - Label Dispenser

Product Comparison Chart

Label Comparison

MODEL # SH414D SH404TR KL-100 KL-150 SH-400 SH402TR SH408 KL-250
Description Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser-Dispenses labels in a vertical position
Method of Label Detection Optical Reader Optical Reader Photo-Sensor Photo-Sensor Specially Designed Micro-Switch Optical Reader Optical Reader Photo-Sensor
Works with Transparent Labels Yes Yes No No Yes Yes Yes No
Speed 280 inches per minute 280 inches per minute 280 inches per minute 280 inches per minute 280 inches per minute 120 inches per minute 240 inches per minute Adjsutable up to 300 inches per second
Construction All Metal All Metal All Metal All Metal All Metal All Metal All Metal All Metal
Brake Motor Yes Yes No No No Yes Yes No
Maximum Label Size-including liner 6 inch wide x 14 inch long 6 inch wide x 14 inch long 4 1/4 inch wide x 14 inch long 6 inch wide x 14 inch long 6 inch wide x 9 inch long 2 inch wide x 6 inch long 8 inch wide x 12 inch line 5 inch wide x 7 inch long
Maximum Roll Diameter 11 1/2 inches 11 1/2 inches 9 inches 9 inches 12 inches 6 inches 12 inches 9 inches
Counter Yes Yes Yes Yes No Yes Yes Yes
Label Waste Rewinder Yes Yes Yes Yes Yes Yes Yes Yes
Free Shipping Included

Fast Facts

  • Automatic Label Dispenser.
  • Ultra-Economical for easy cost justification.

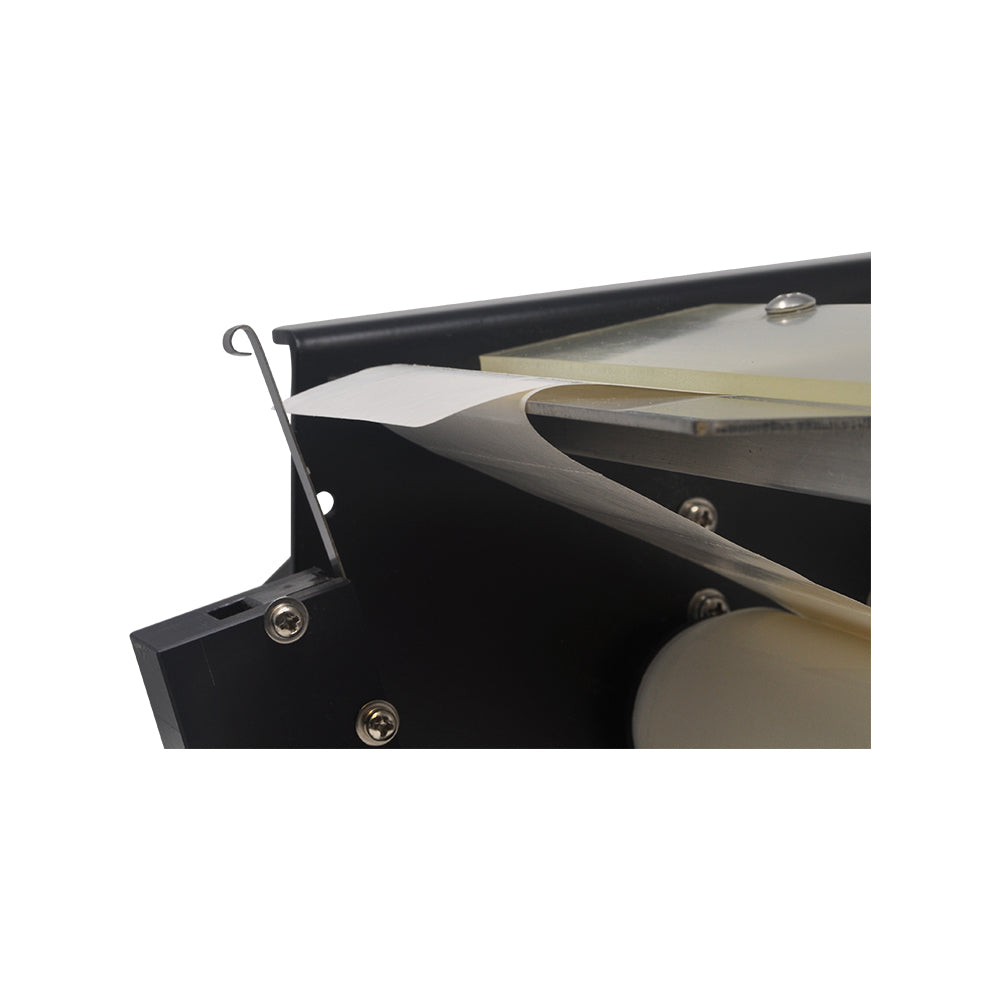

  • Uses our specially designed ultra-sensitive micro-switch to detect the leading edge of the label.
  • Works with all types and shapes of transparent and opaque labels.

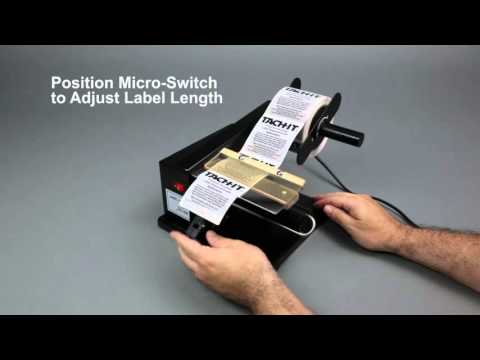

  • No tools needed to adjust for the length of the labels.
  • Heavy duty construction for years of reliable service.
  • Large roll diameter and re-winder for the label waste.

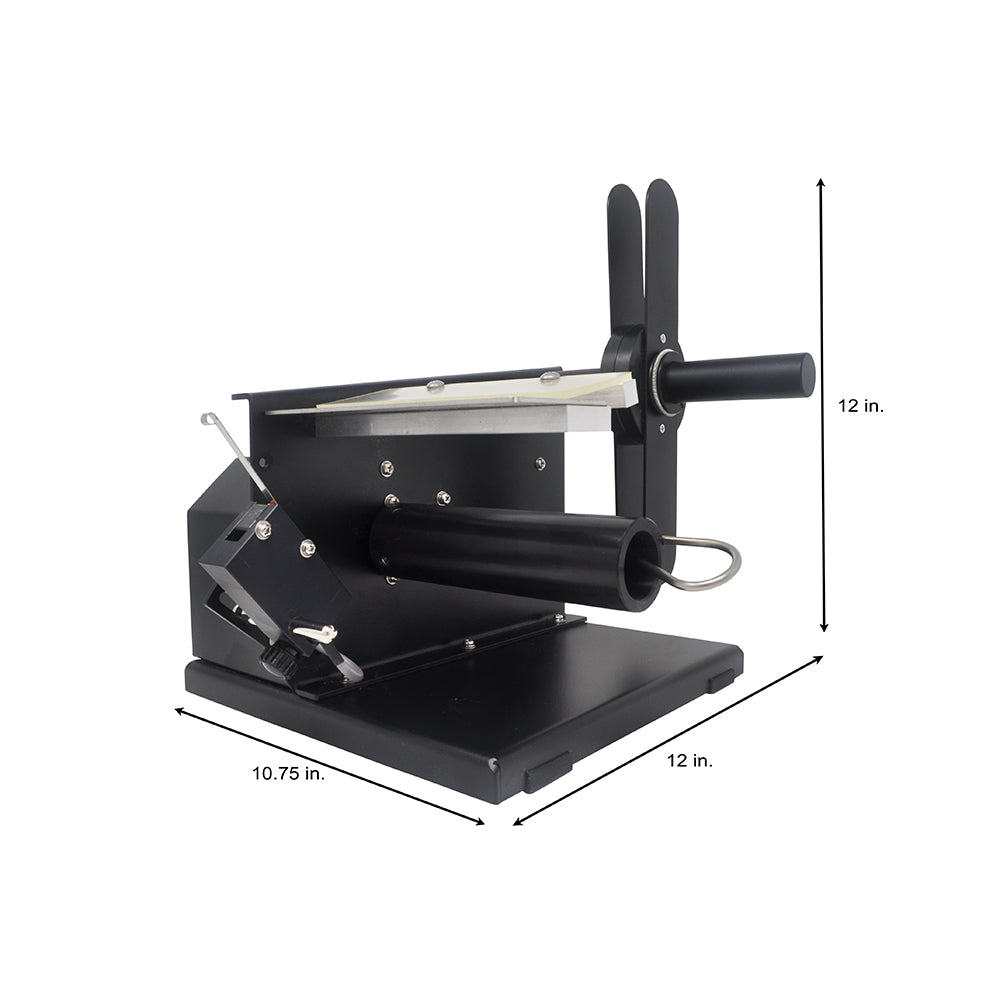

  • Fully portable - small table top design.
  • Speed - 280 inches per minute.

Details

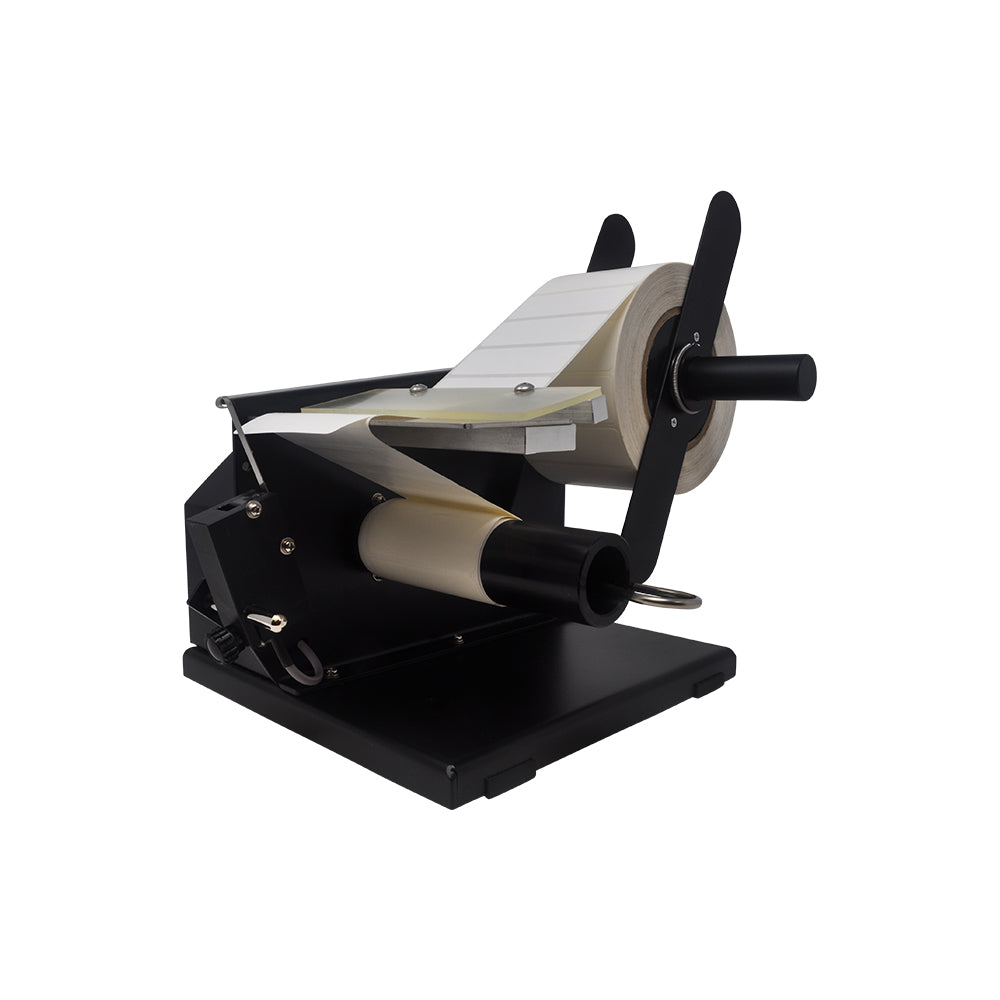

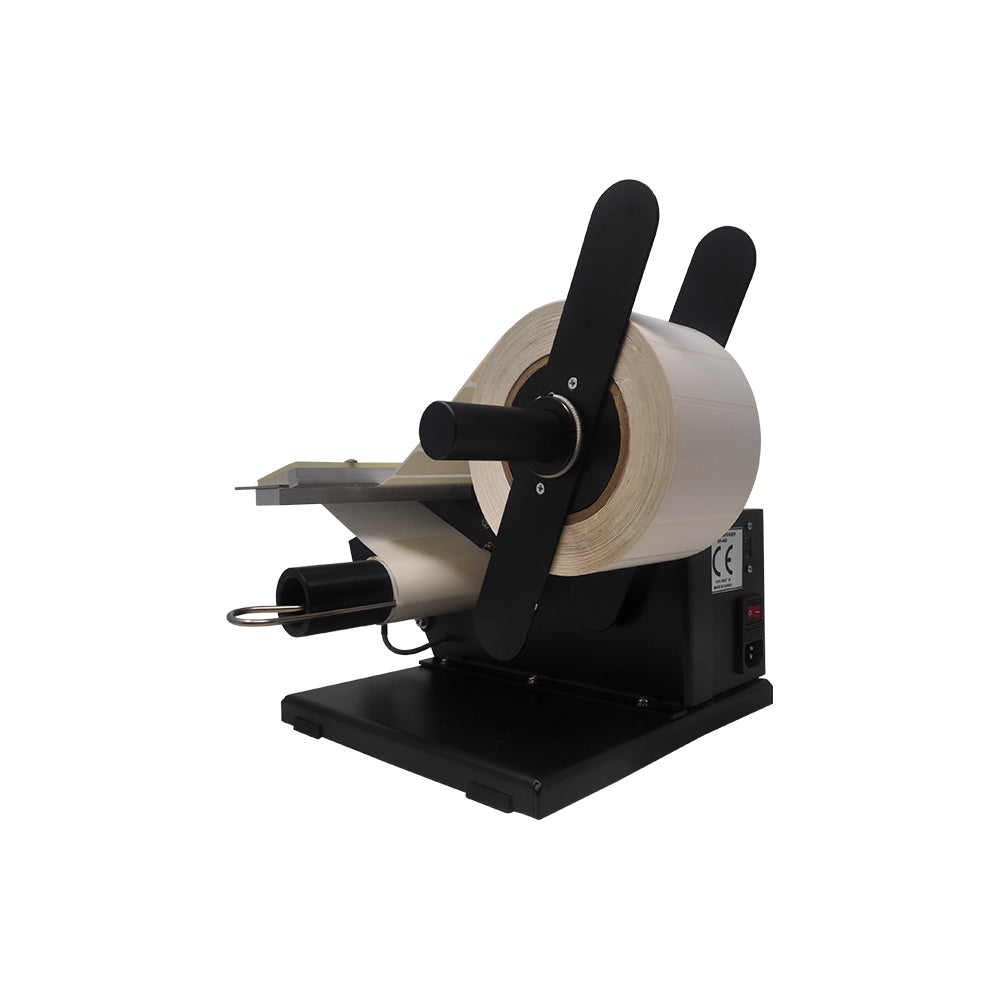

The Tach-It SH-400 ultra-economical, pressure sensitive label dispenser is perfect for labels up to 6 inch wide. Easy to adjust and requiring no tools, the specially designed, extra-sensitive micro-switch senses the edge of the label as it is fed and stops the motor exactly at the same point each cycle. The Tach-It SH-400 works on all types, styles, and shapes of die-cut and butt-cut labels on a 1 inch or 3 inch core. Able to feed 240 inches per minute, the Tach-It SH-400 has a high speed motor, small table top design, and a label waste re-winder for operator and work place safety.
