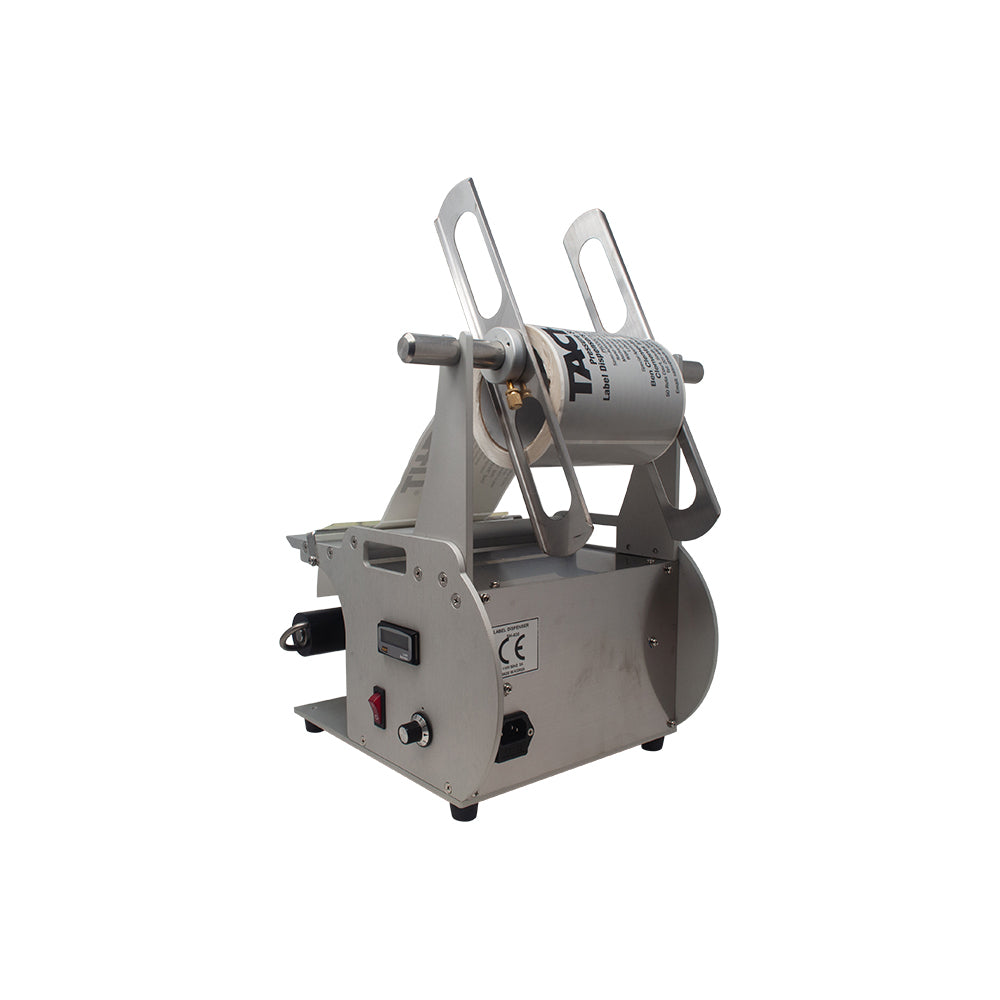

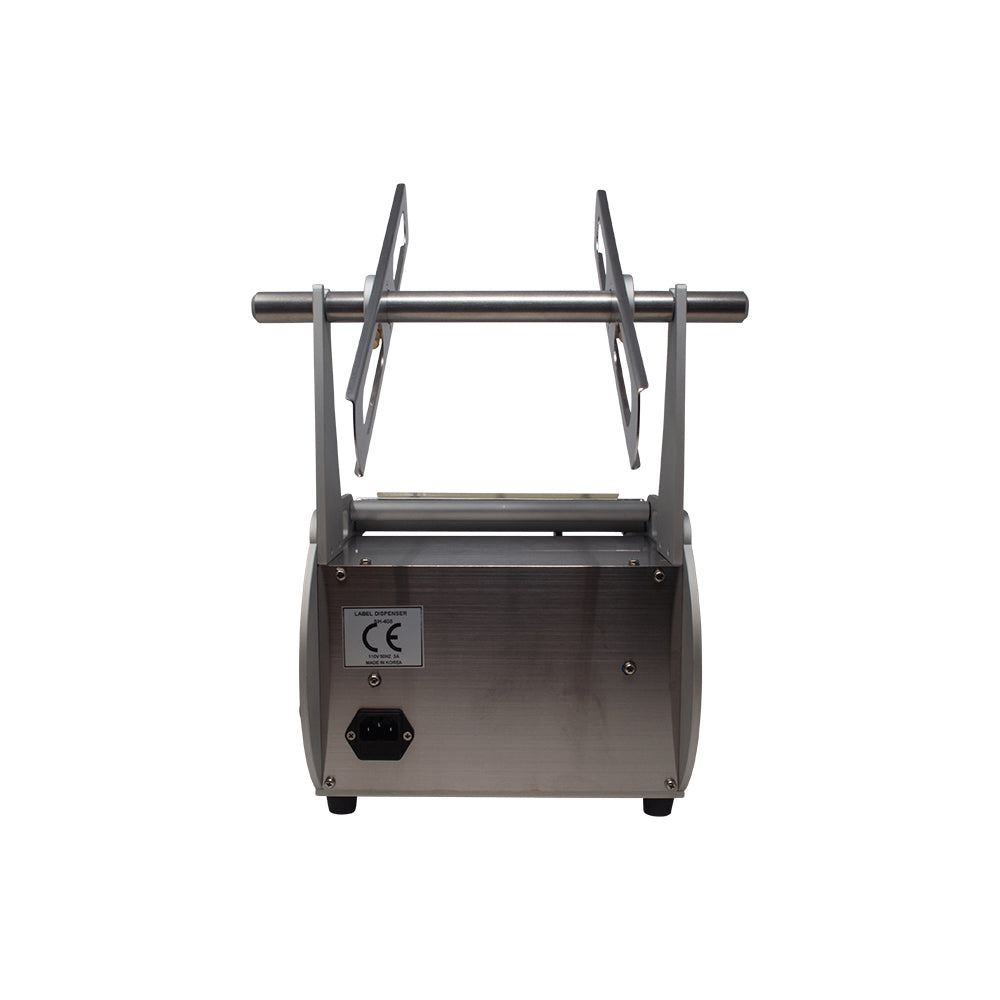

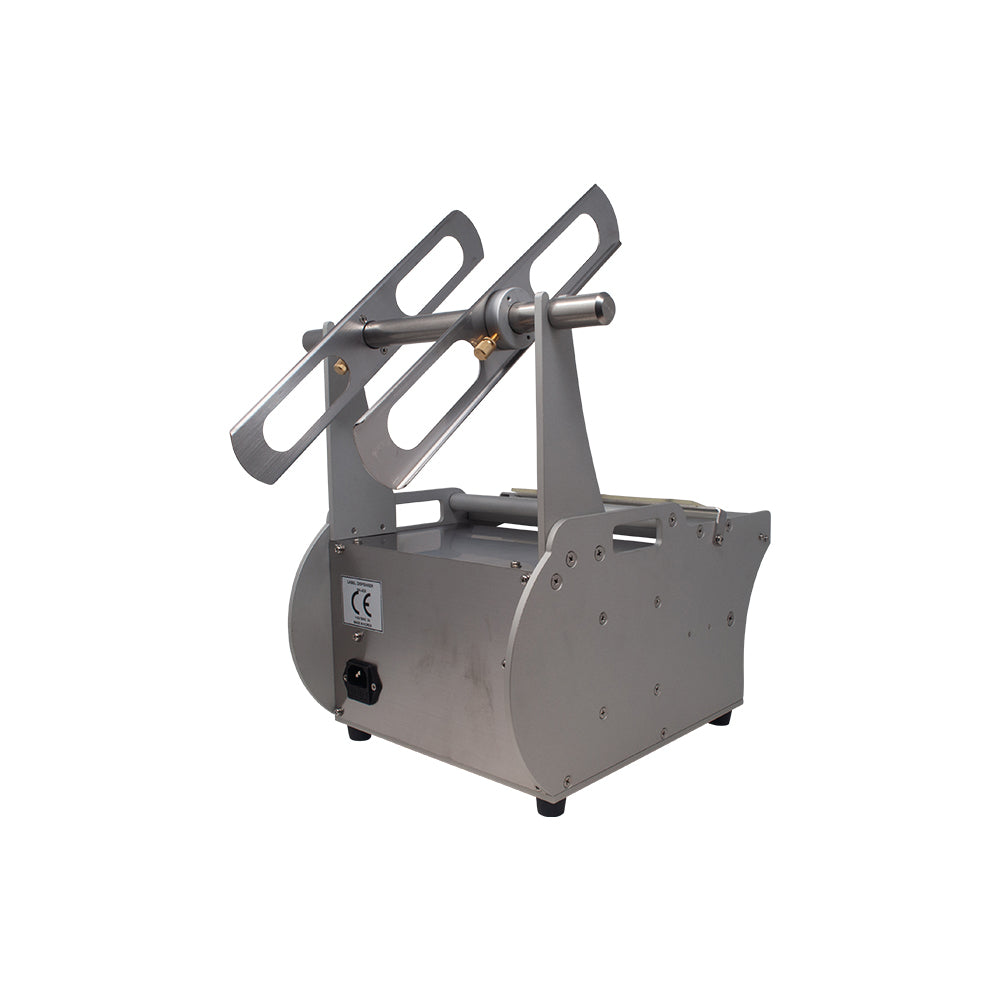

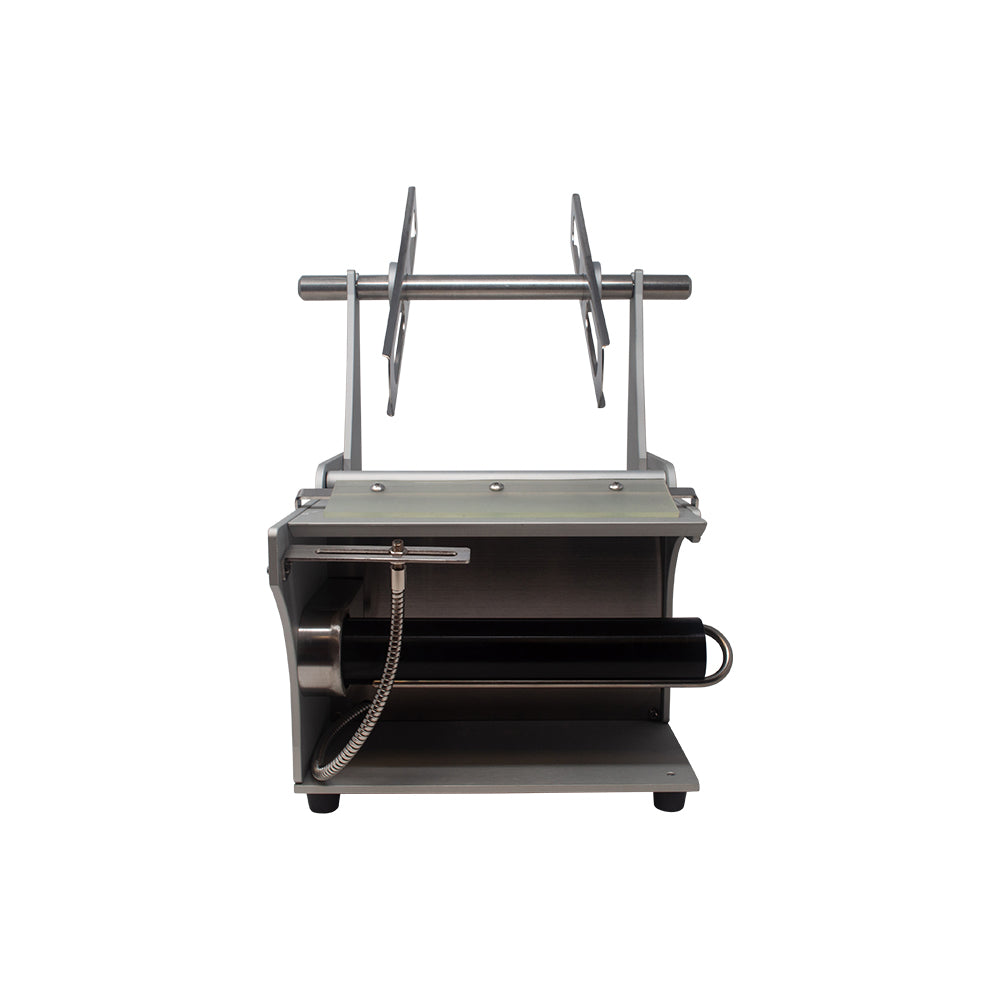

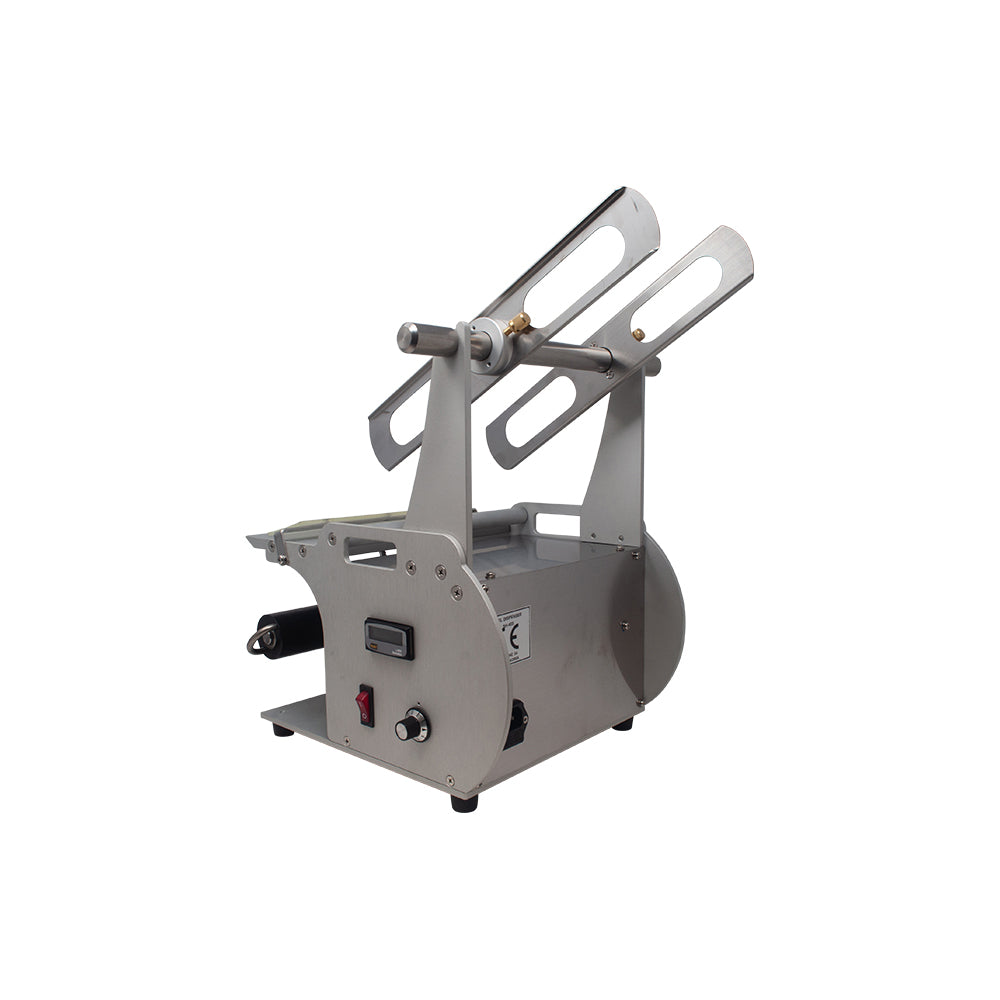

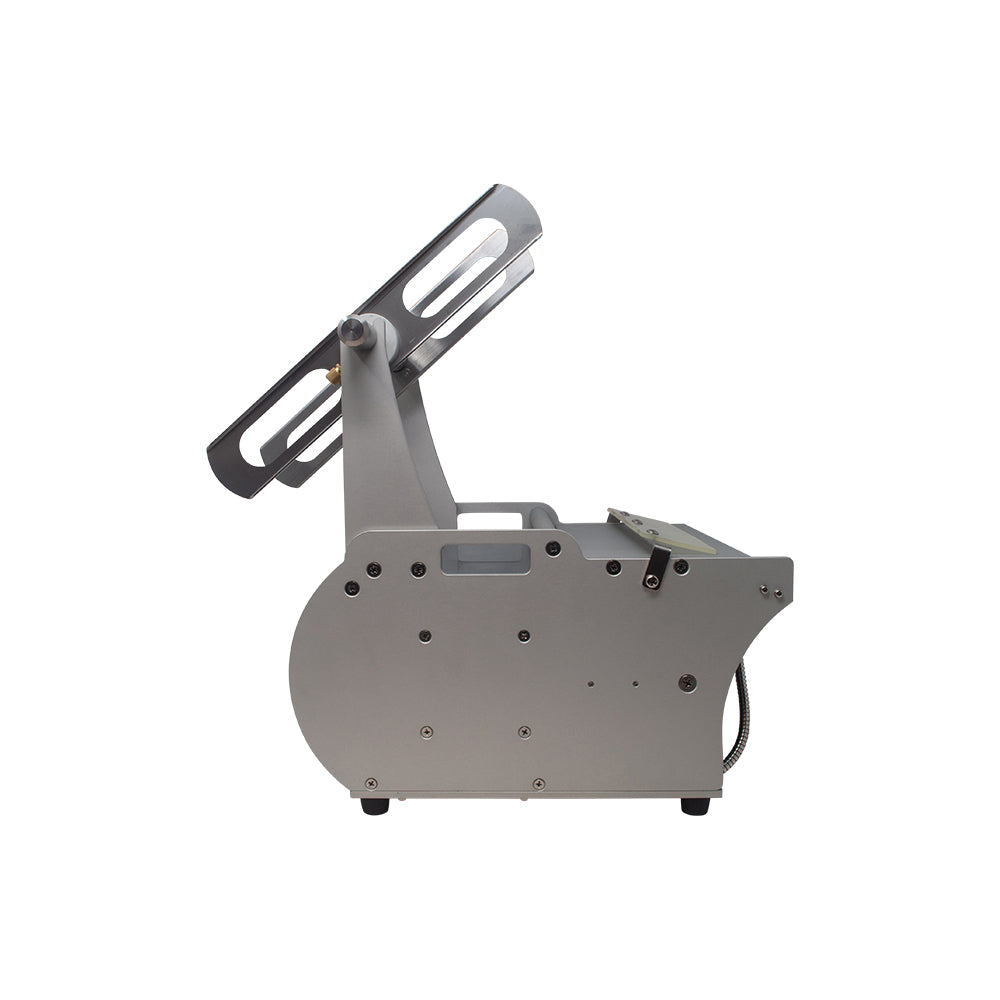

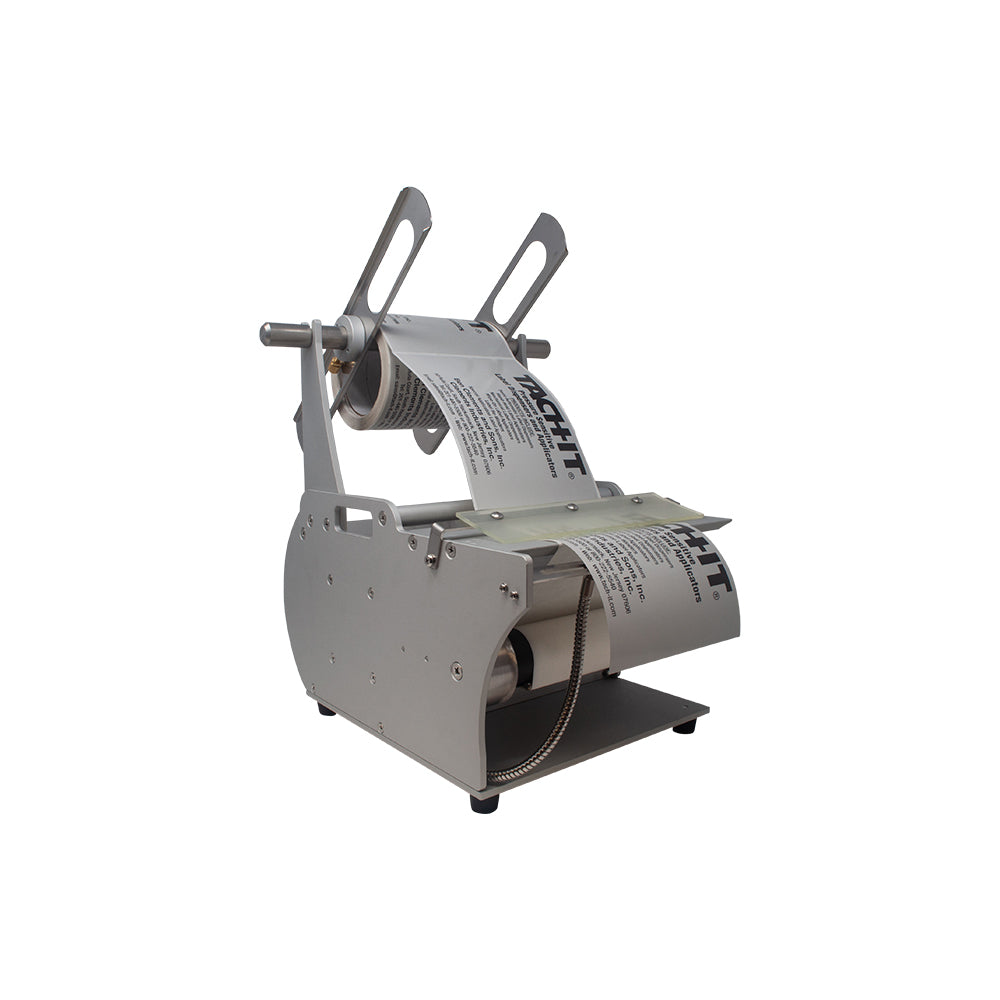

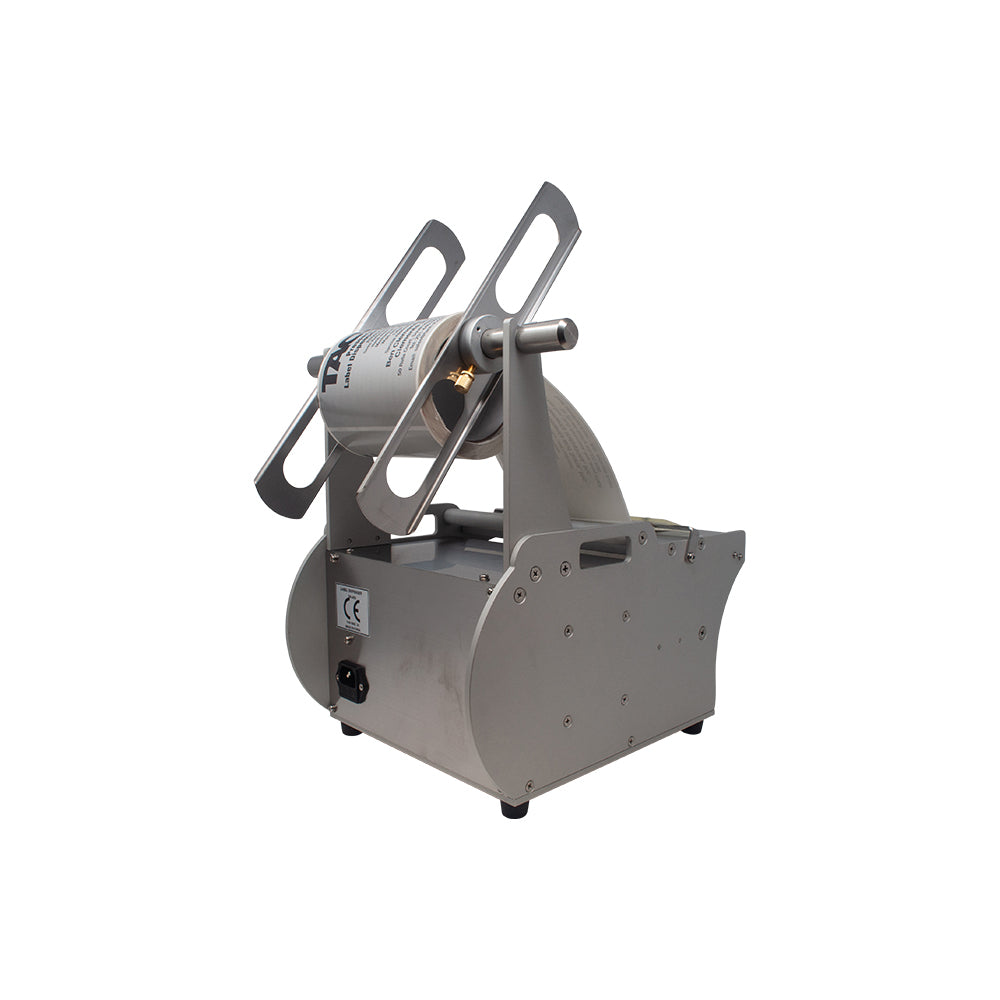

SH408 - Label Dispenser

Product Comparison Chart

Label Comparison

MODEL # SH414D SH404TR KL-100 KL-150 SH-400 SH402TR SH408 KL-250
Description Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser Automatic Label Dispenser-Dispenses labels in a vertical position
Method of Label Detection Optical Reader Optical Reader Photo-Sensor Photo-Sensor Specially Designed Micro-Switch Optical Reader Optical Reader Photo-Sensor
Works with Transparent Labels Yes Yes No No Yes Yes Yes No
Speed 280 inches per minute 280 inches per minute 280 inches per minute 280 inches per minute 280 inches per minute 120 inches per minute 240 inches per minute Adjsutable up to 300 inches per second
Construction All Metal All Metal All Metal All Metal All Metal All Metal All Metal All Metal
Brake Motor Yes Yes No No No Yes Yes No
Maximum Label Size-including liner 6 inch wide x 14 inch long 6 inch wide x 14 inch long 4 1/4 inch wide x 14 inch long 6 inch wide x 14 inch long 6 inch wide x 9 inch long 2 inch wide x 6 inch long 8 inch wide x 12 inch line 5 inch wide x 7 inch long
Maximum Roll Diameter 11 1/2 inches 11 1/2 inches 9 inches 9 inches 12 inches 6 inches 12 inches 9 inches
Counter Yes Yes Yes Yes No Yes Yes Yes
Label Waste Rewinder Yes Yes Yes Yes Yes Yes Yes Yes

Fast Facts

  • Automatic Label Dispenser.
  • Extra wide for labels up to 8 inch wide.
  • Uses a non-contact optical reader to detect all types of labels including transparent labels.
  • For die-cut and butt-cut labels of virtually and shape and material.
  • Heavy duty construction to support large rolls of labels.
  • Digital cycle counter and large roll diameter.
  • Re-winder for the label liner waste.
  • Fully portable and small table top design.

Details

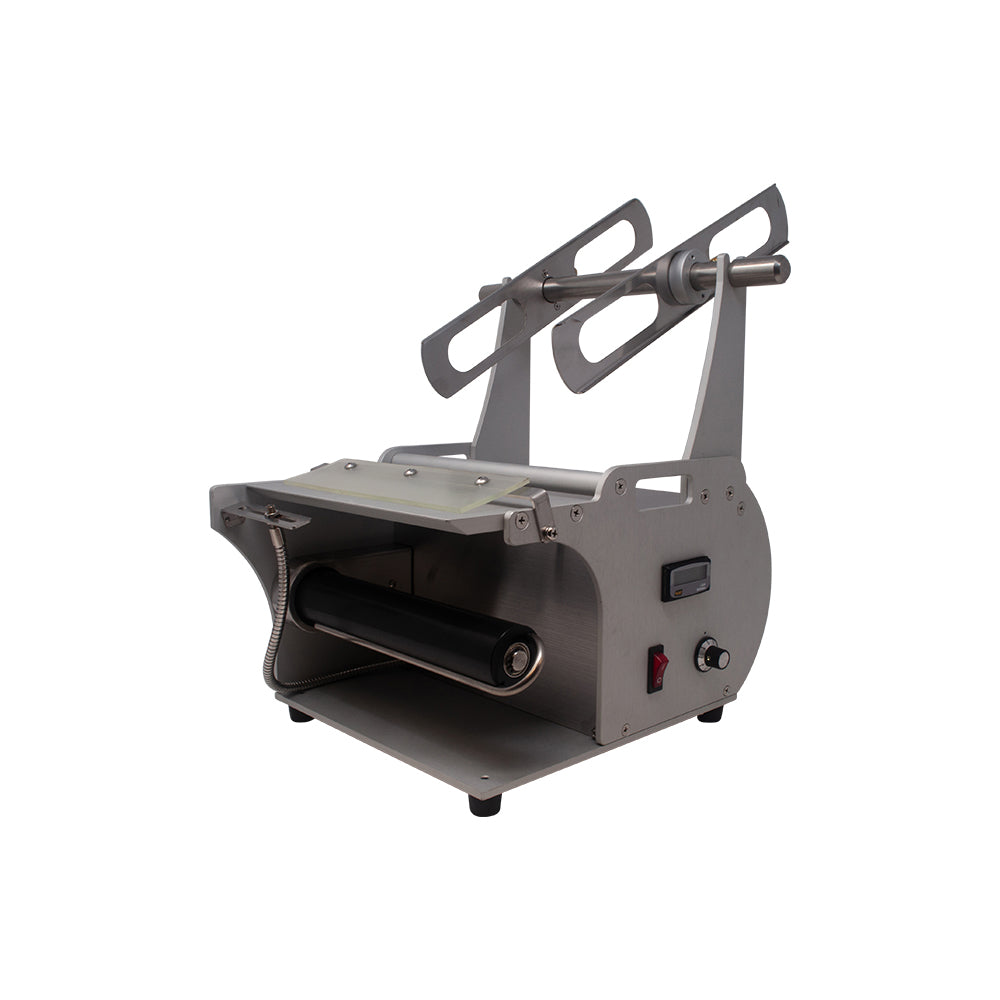

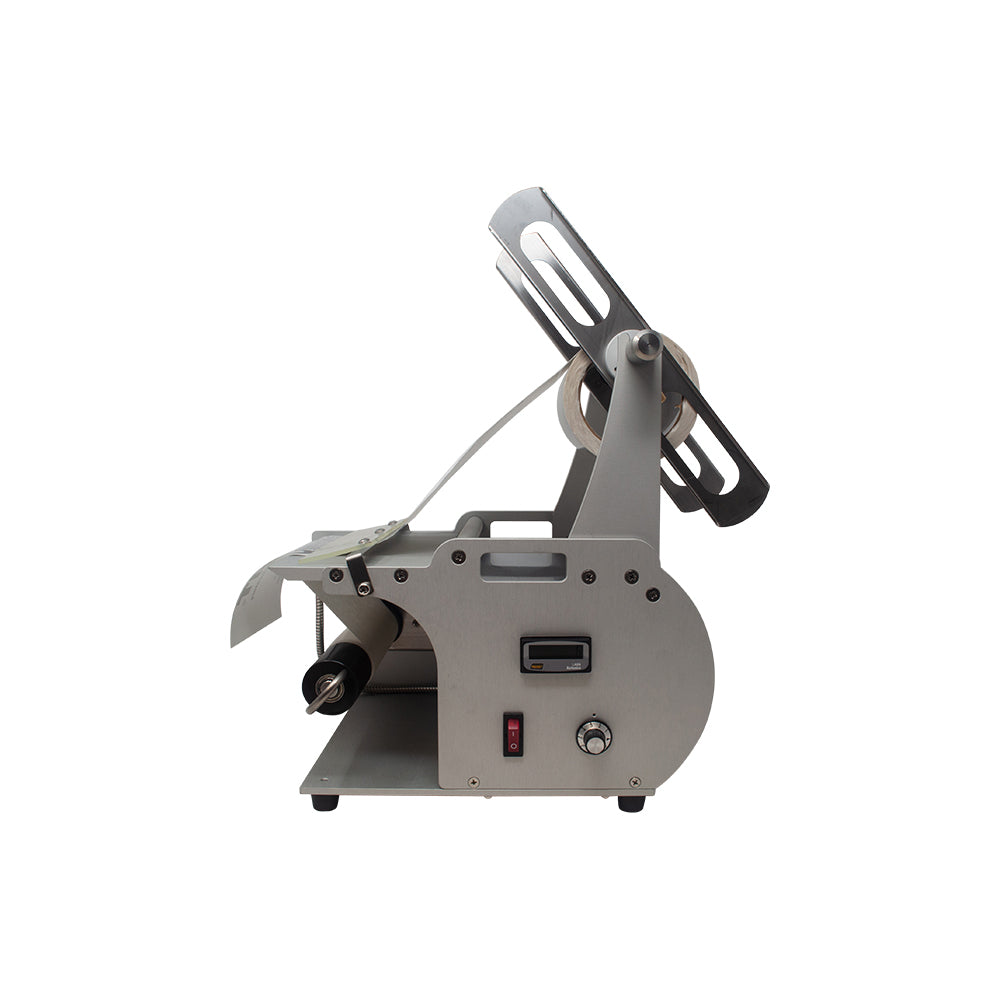

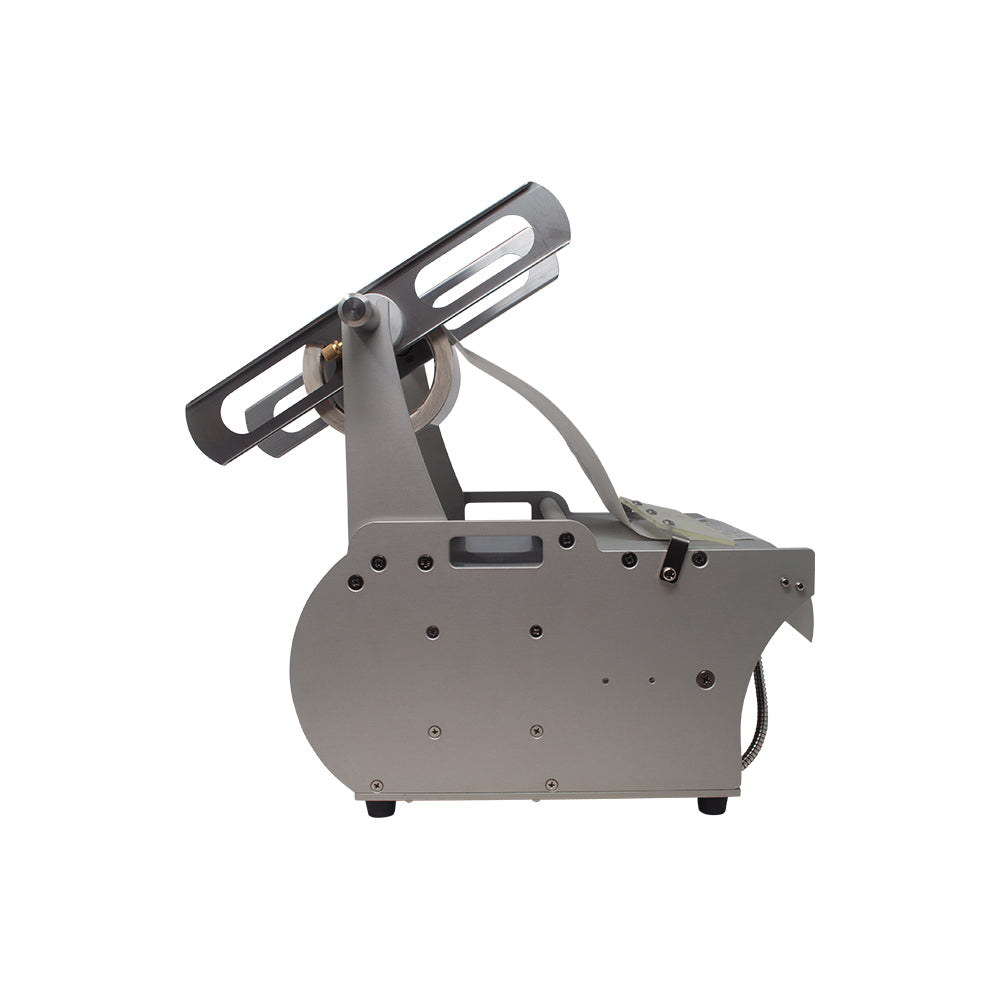

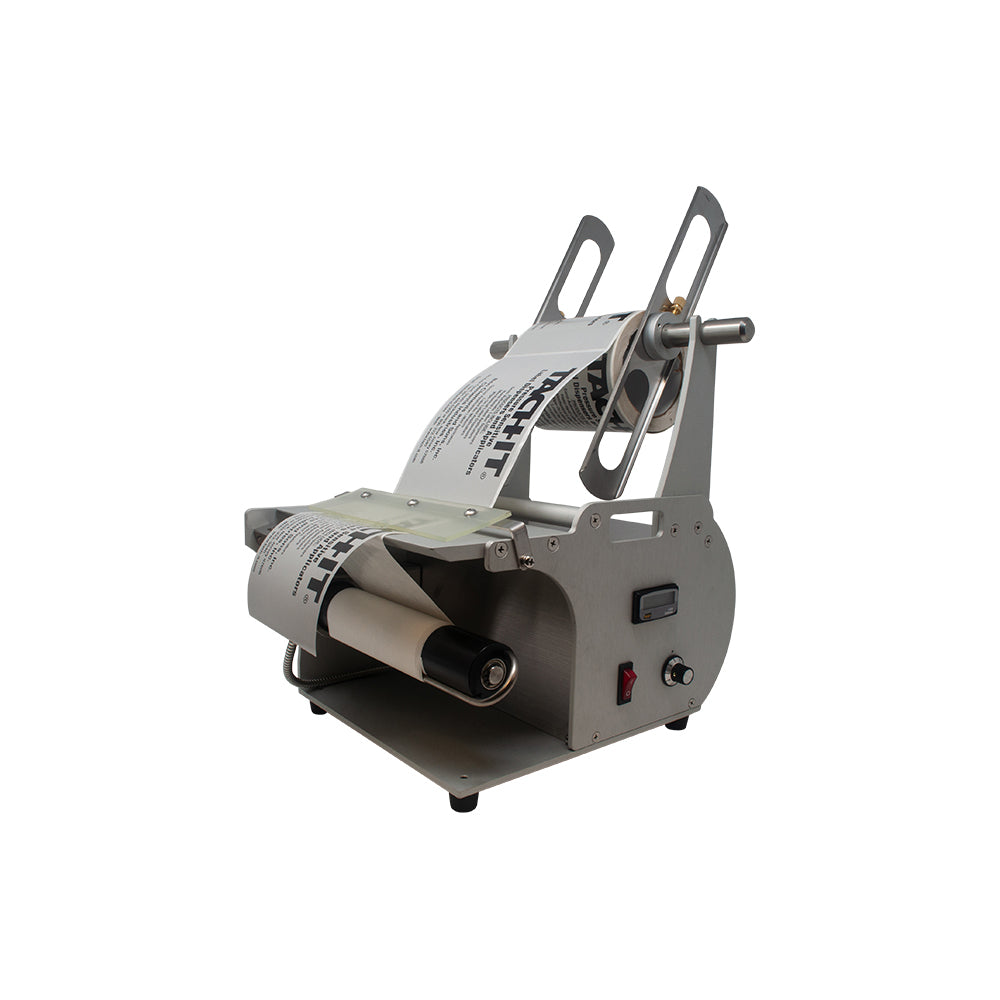

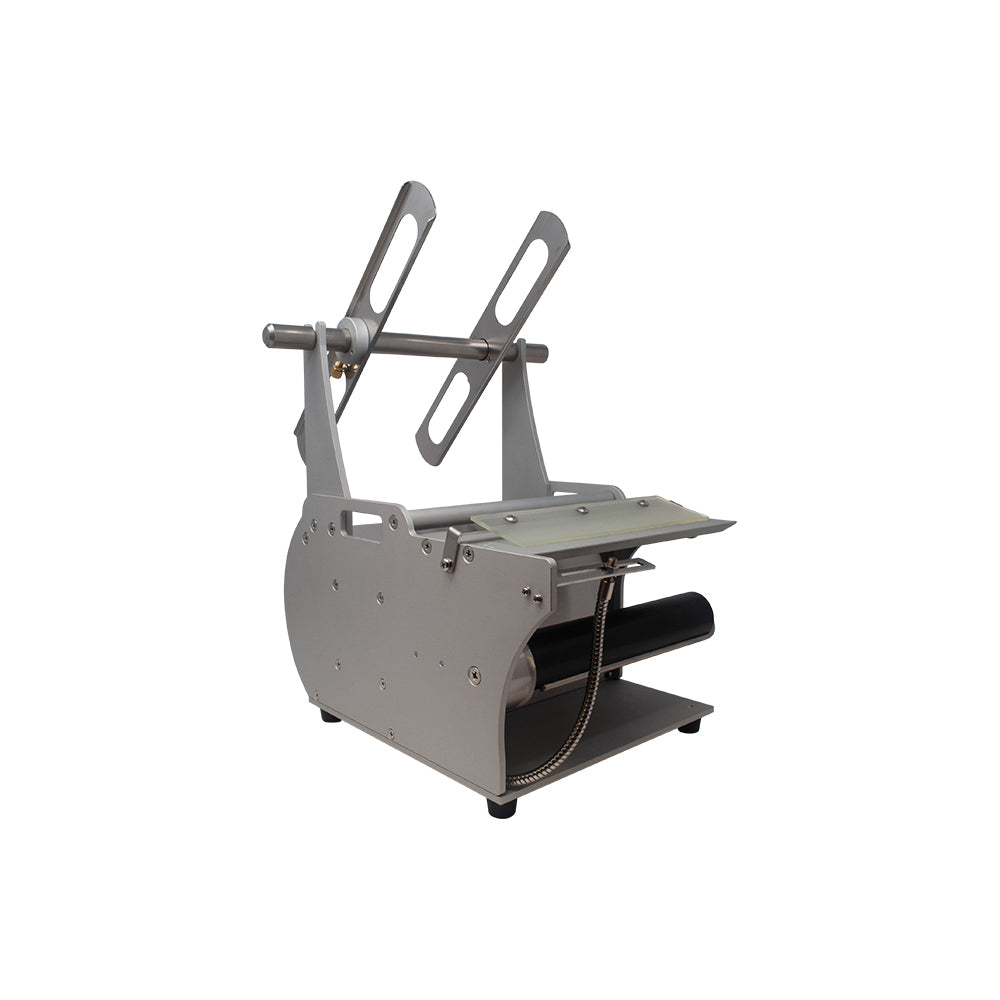

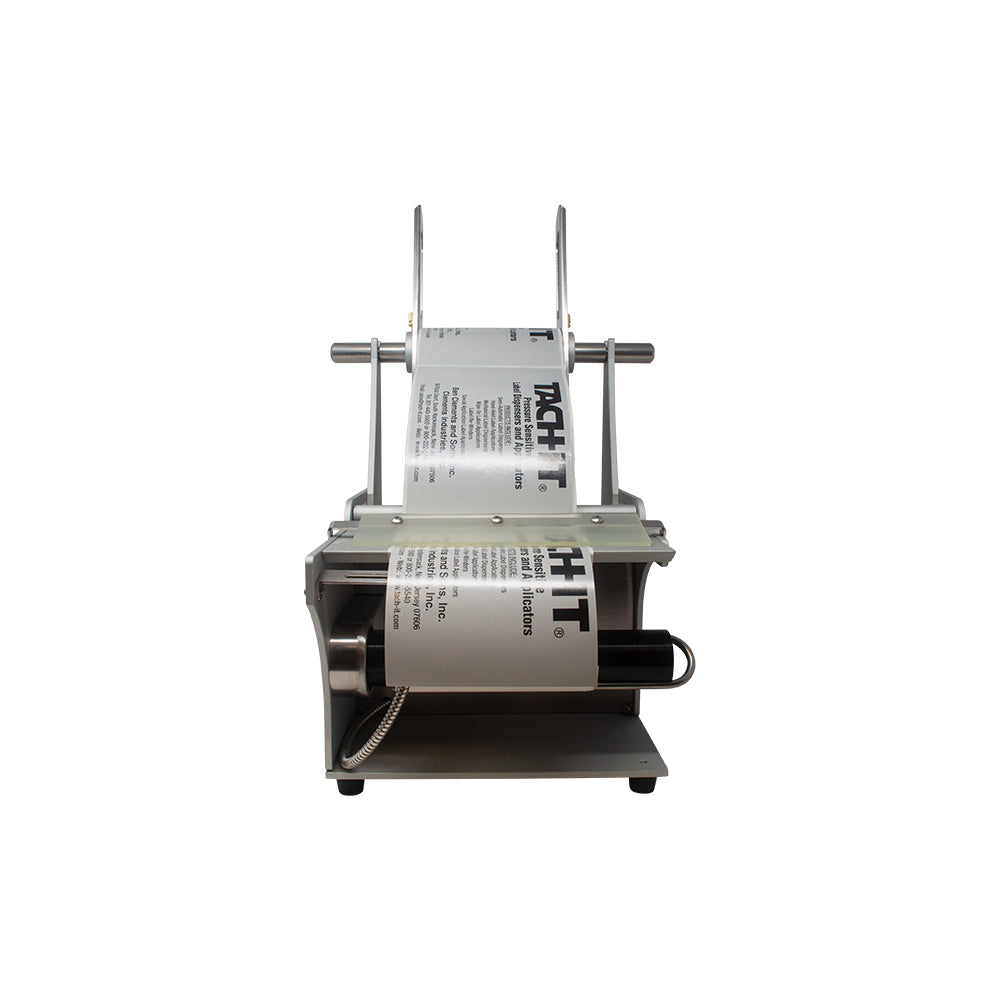

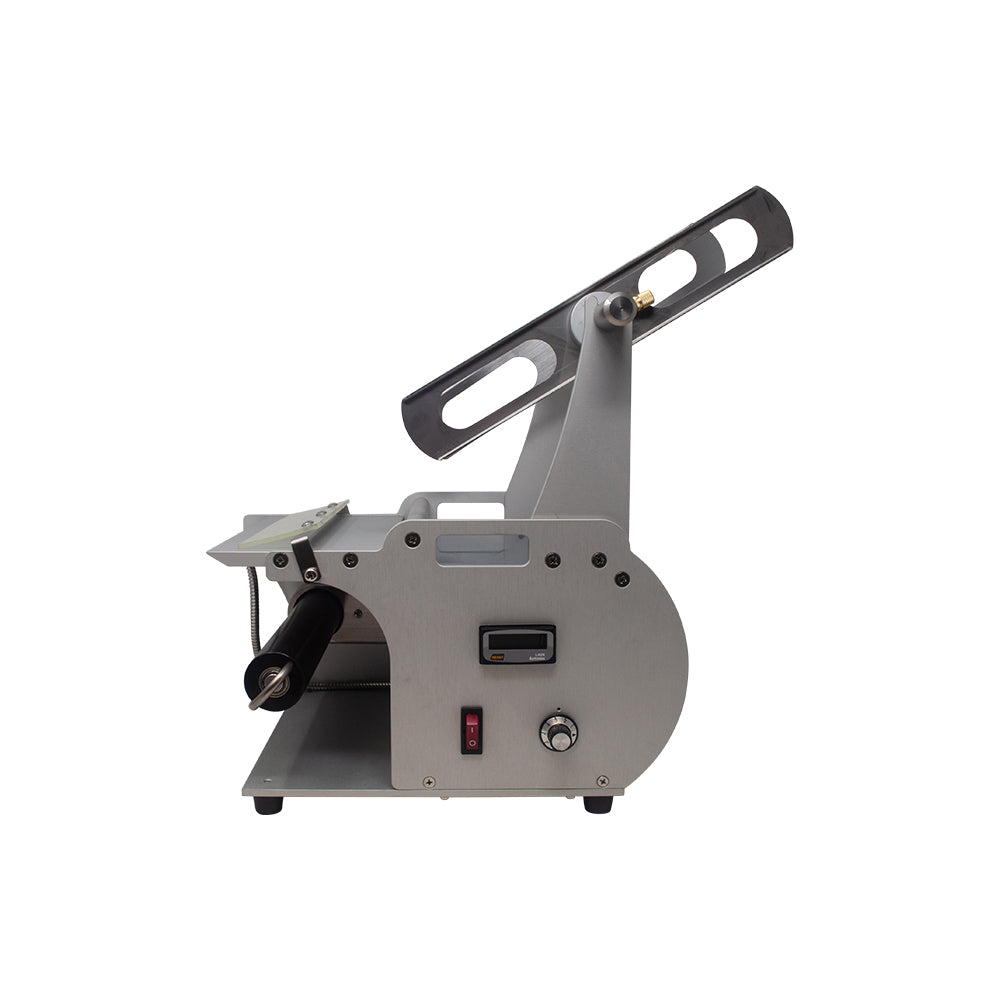

The Tach-It SH-408 pressure sensitive label dispenser can dispense labels up to 8 inch wide on either a 1 inch or 3 inch core. Utilizing our state-of-the-art non-contact optical reader, this unit is easy to use, works on all types, styles, and shapes of labels that are either die-cut or butt-cut. Simple to adjust without any tools, our SH-408 is specially designed to handle heavy, large diameter rolls of labels, has a small table top design, a high speed motor and a label waste re-winder for operator and work place safety.

Downloads



Specifications

Machine: Length – 13 1/2 inch, Width – 10 inch, Height – 13 1/2 inch
Weight: 21 Lbs.
Label Size: Minimum - 3/8 inch Width X 1 inch Length, Maximum - 8 inch Width X 12 inch Length
Label Roll Diameter: 12 inch
Speed: 240 inches per minute
Power: 110 Volt / 240 Volt dip switch controlled
Core Size: 1 inch and 3 inch
