|Model #||#5000||SL-1||SL-3||#6100-SS||#6100-SS Stand||#6115||#6125||#6180||#6605||#6250||Z-Cut 2||Z-Cut 3||UW6|
|Description:||Manual Tape Dispenser||Manual Tape Dispenser||Manual Tape Dispenser||Automatic Tape Dispenser||Optional large tape roll unwind stand for Model #6100-SS and 6115||Heavy Duty Automatic Tape Dispenser||Automatic Tape Dispenser||Heavy Duty Automatic Tape Dispenser||Heavy Duty Automatic Tape Dispenser||Automatic Tabbing Tape Dispenser||Carousel Automatic Tape Dispenser||Carousel Automatic Tape Dispenser||Optional Large Roll Stand for Tape and Label Dispensers|
|Modes:||Manual||Manual||Manual||Random and Automatic||Not Applicable||Random, Semi-Automatic and Automatic||Random, Semi-Automatic and Automatic||Random, Semi-Automatic and Automatic||Random, Semi-Automatic and Automatic||Random, Semi-Automatic and Automatic||Automatic||Automatic||Not Applicable|
|Memory Presets:||Not Applicable||Not Applicable||Not Applicable||Not Applicable||Not Applicable||4 Memory presets||6 Memory Presets||4 Memory presets||4 Memory presets||Not Applicable||Not Applicable||Not Applicable||Not Applicable|
|Maximum Width of Tape:||1 1/2 inch wide||1 inch wide||3 inch wide||1 roll up to 2 inch wide or 2 rolls up to 1 inch wide each||Not Applicable||1 roll up to 2 inch wide or 2 rolls up to 1 inch wide each||1 roll up to 2 inch wide or 2 rolls up to 1 inch wide each||3 1/8 inch wide||6 inch wide||1 roll up to 2 inch wide or 2 rolls up to 1 inch wide each||1 inch wide||I inch wide||Not Applicable|
|Maximum Length of Tape:||Fixed Length of 1 1/2 inch||Up to 4 inch||Up to 8 inch||Up to 39.4 inches||Not Applicable||Up to 39.4 inches||Up to 39.4 inches||Up to 39.4 inches||Up to 39.4 inches||Up to 39.4 inches||2 3/8 inches||2 3/8 inches||Not Applicable|
|Maximum Roll Diameter:||5 inch||5 1/2 inches||7 1/2 inches||6 inches and has optional large roll stand||14 inches||6 inches and has optional large roll stand||14 inches||11 3/4 inches||11 3/4 inches||6 omcjes||5 inches||6 inches||17 inches|
|Core Size:||3 inch||1 and 3 inch||3 inch||3 inch||3 inch||3 inch||Not Applicable||Not Applicable||Not Applicable||3 inch||1 inch, 1 1/4 inch and 3 inch||Not Applicable||1 inch and 3 inch|
|Power:||Not Applicable||Not Applicable||Not Applicable||110 Volt 50/60 Hz||Not Applicable||110 Volt 0r 220 Volt 50/60 Hz||110 Volt 50/60 Hz||110 Volt 0r 220 Volt 50/60 Hz||110 Volt 0r 220 Volt 50/60 Hz||110 Volt 50/60 Hz||110 Volt 50/60 Hz||110 Volt 50/60 Hz||Not Applicable|

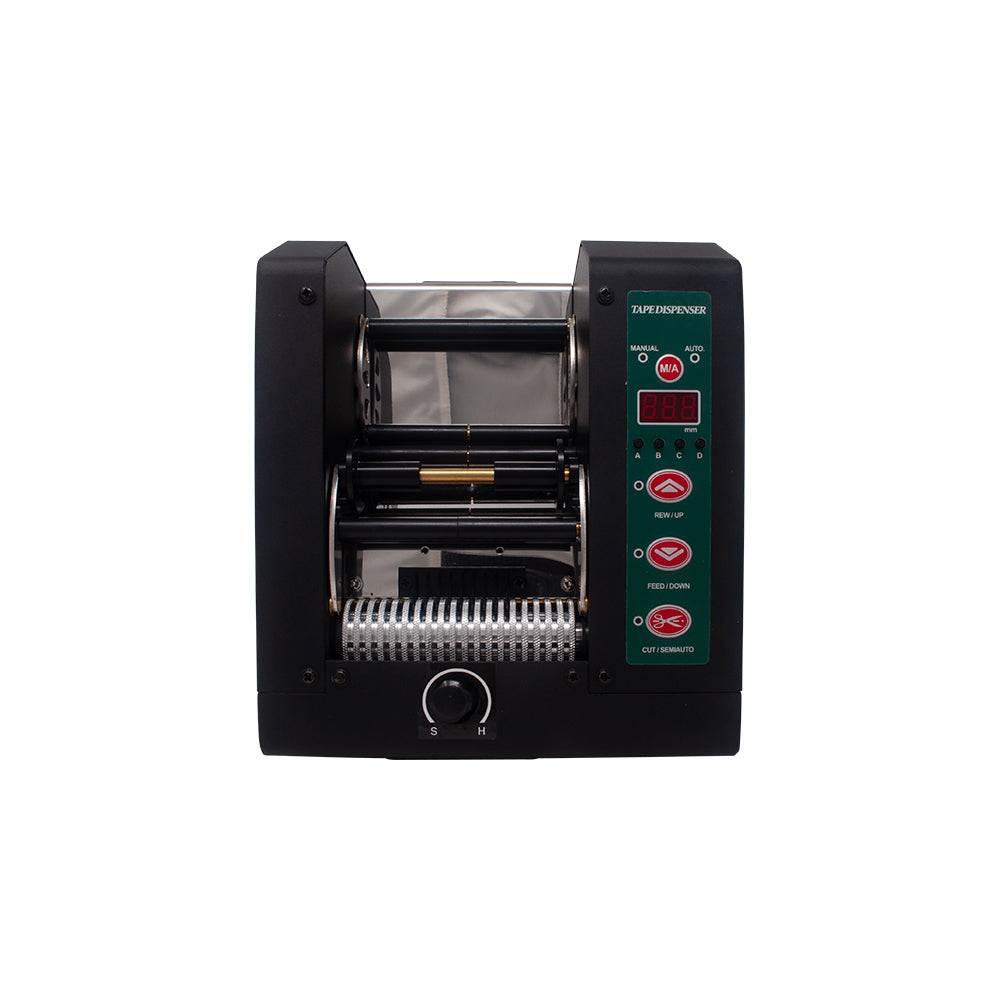

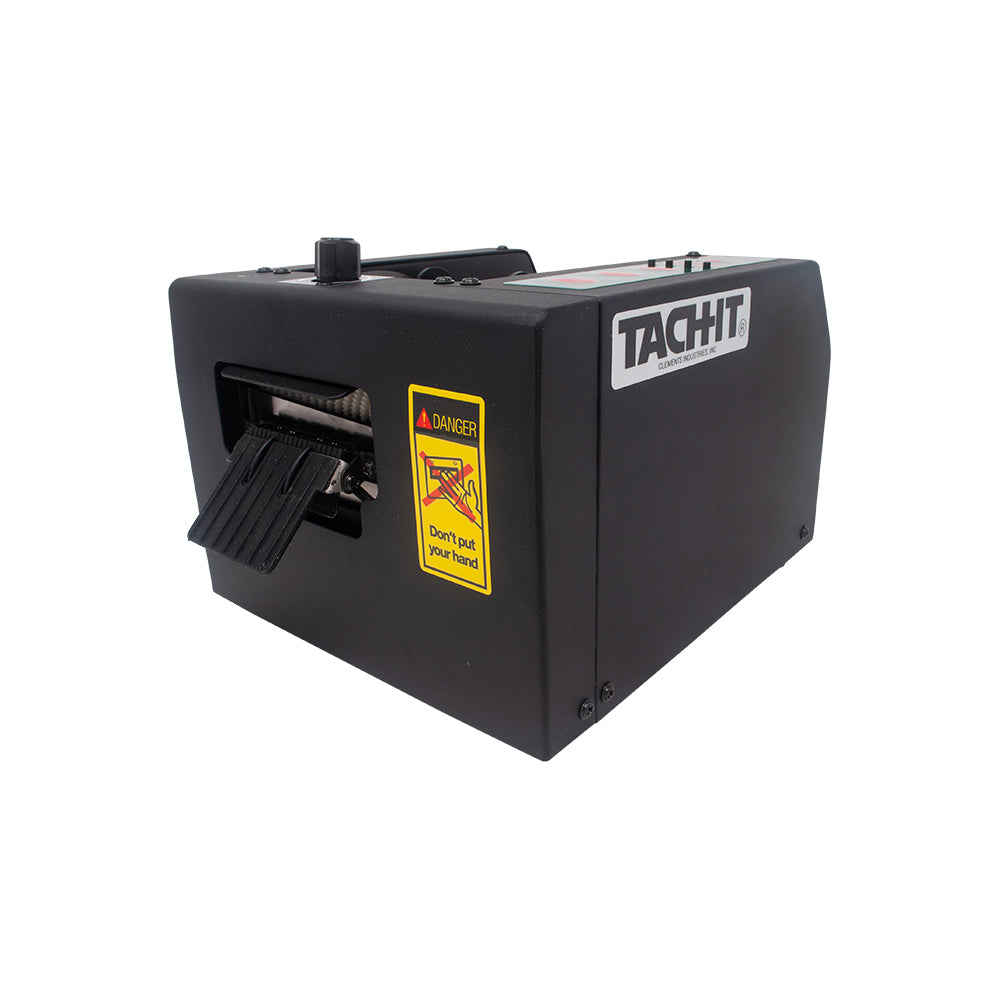

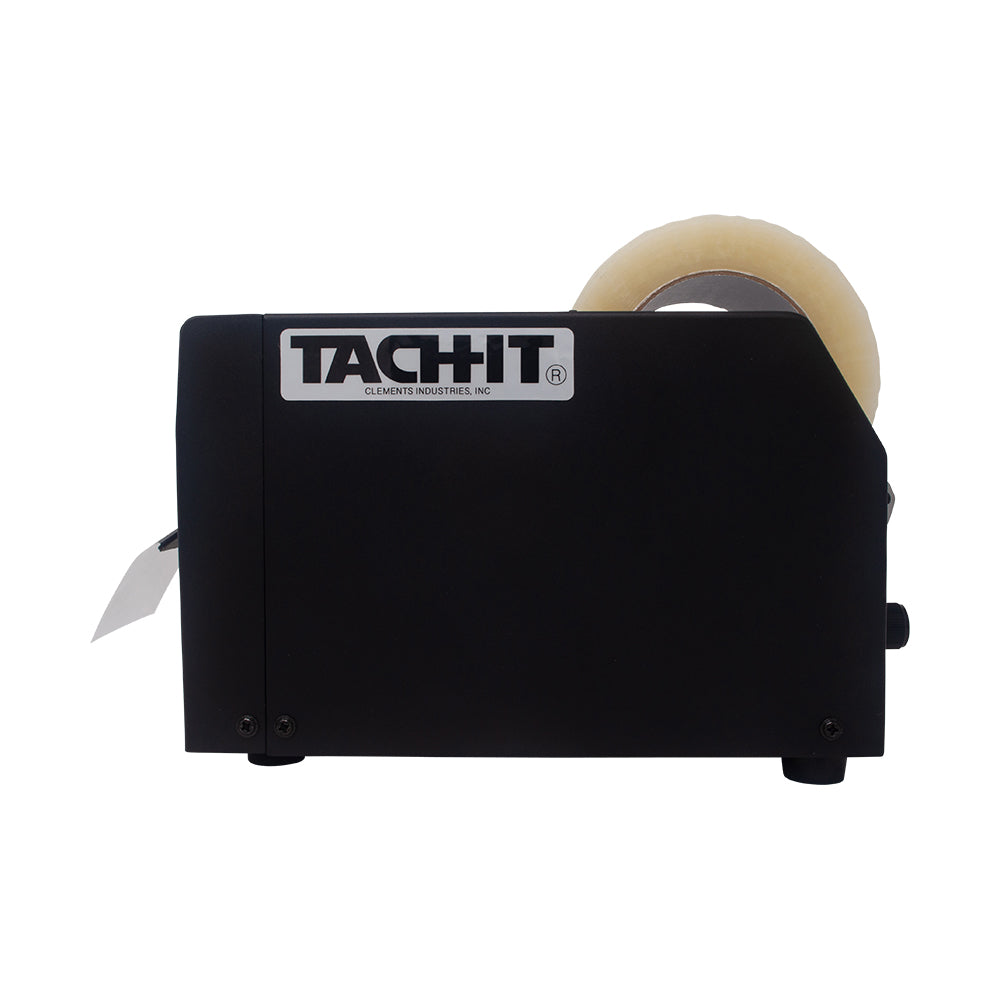

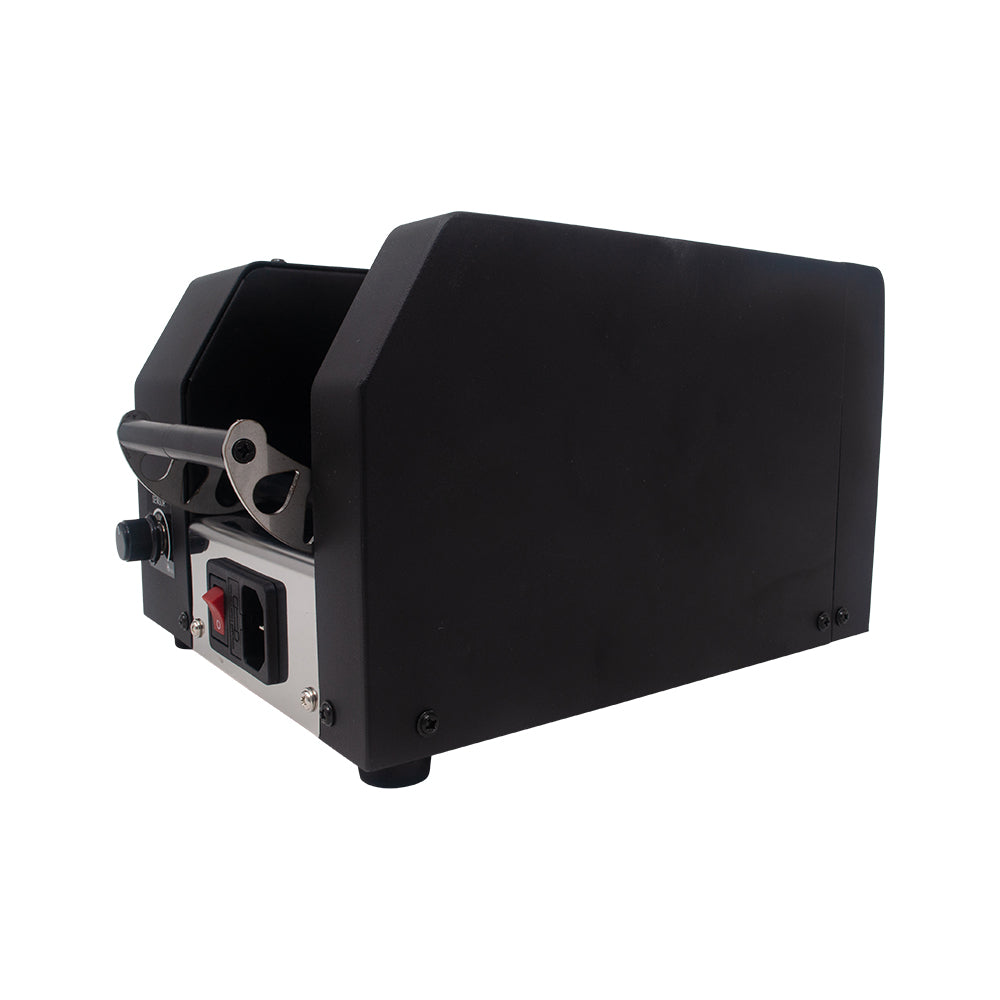

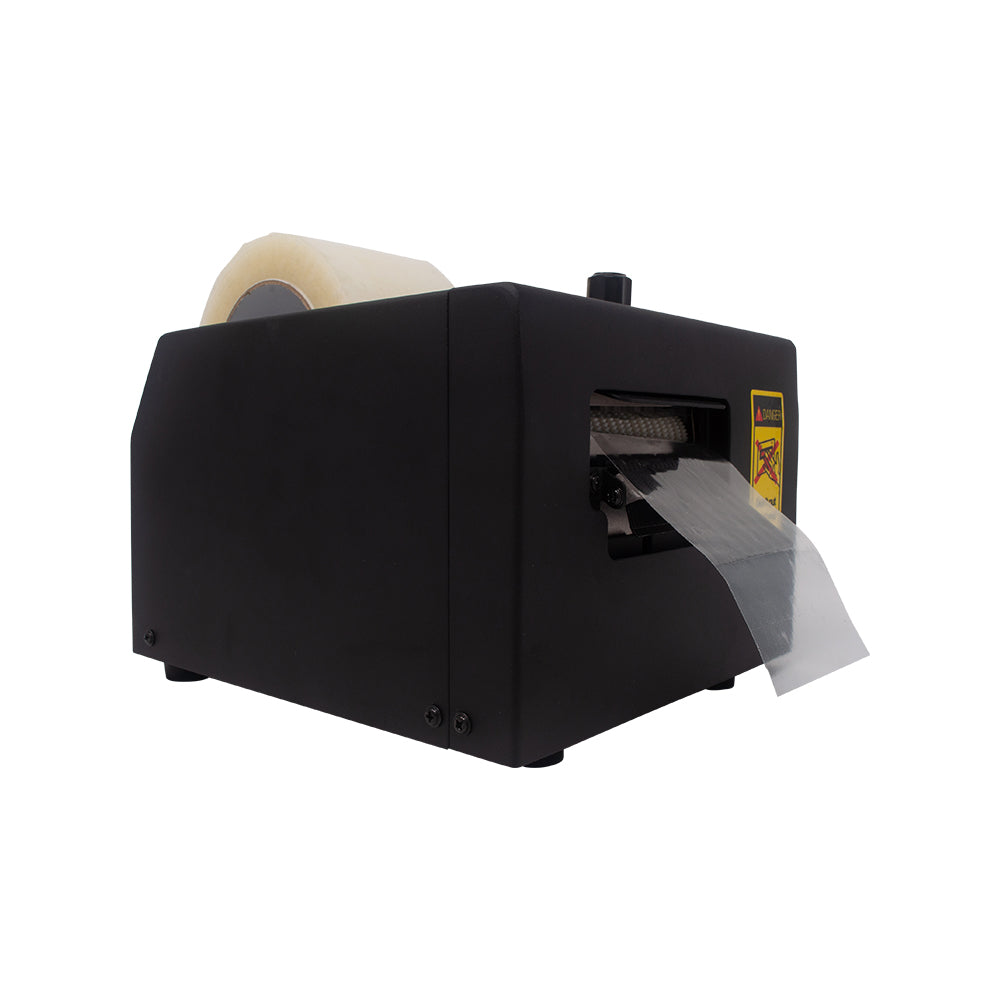

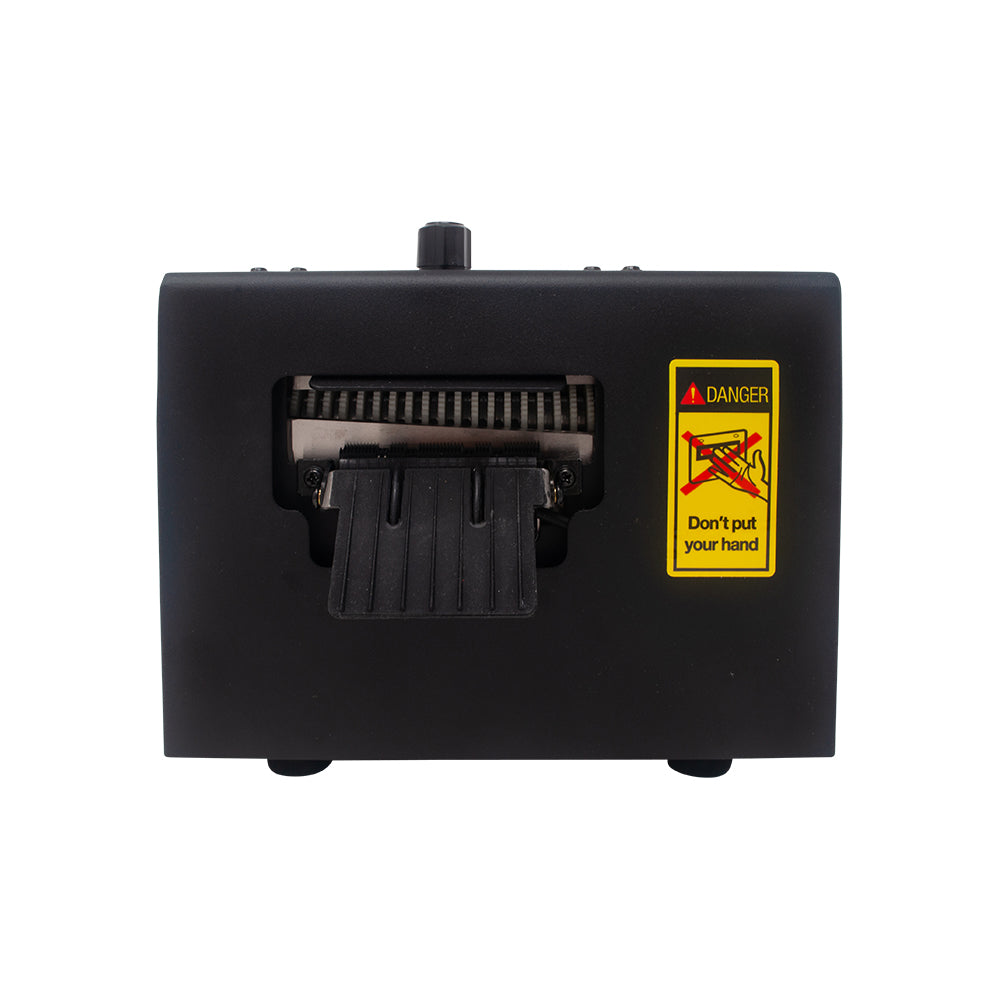

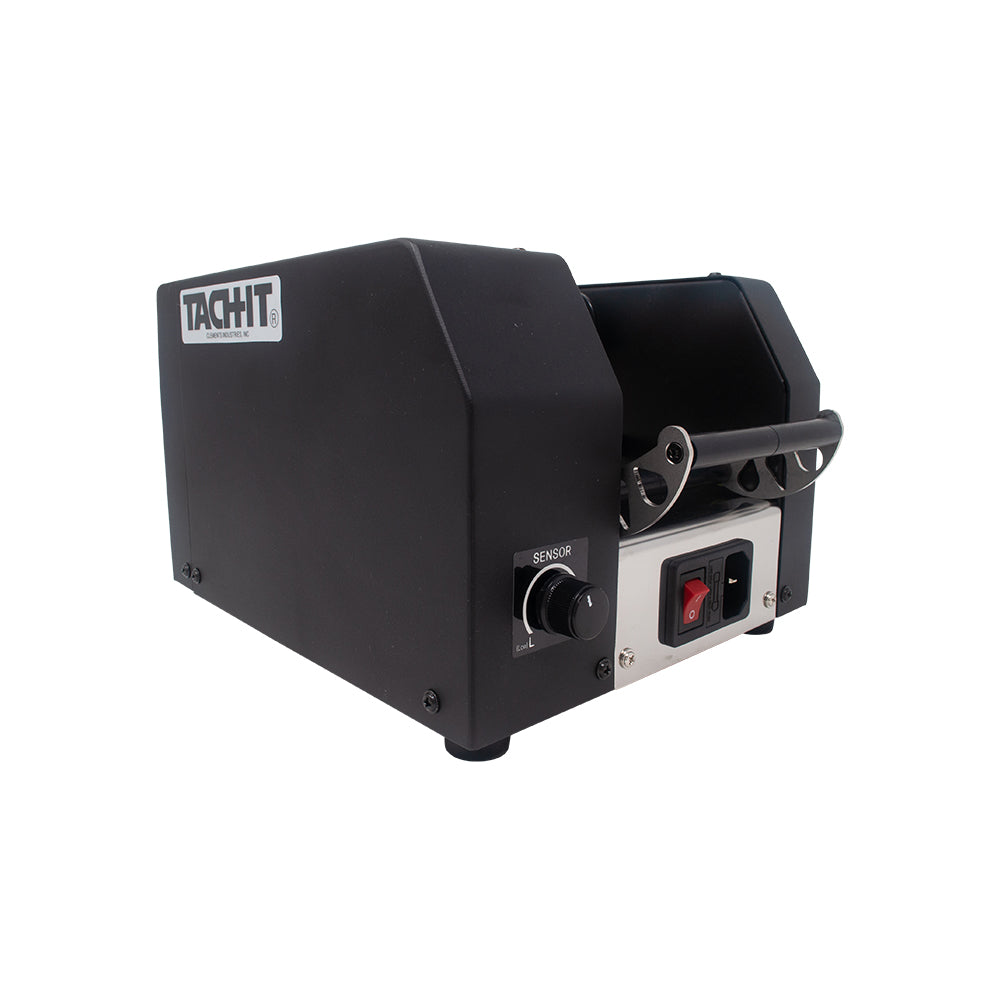

This heavy duty automatic feed and cut definite length tape dispenser can dispense and cut most commonly found packaging tapes and materials up to 3 1/8 inch wide. As the most durable definite length dispenser due to the all metal internal components, the 6180 is reliable and easy to use with push button and LED controls and 4 programmable memory presets. The Tach-It Model 6180 can cut from 1/2 inch to 39.3 inches in length. The 6180 has 3 modes. In random mode, the operator presses the feed button until the desired length of tape is fed and then presses the cut button to cut the tape. In Semi-Automatic mode, the pre-determined length of tape is fed and cut and removed from the machine. When the operator is ready for the next length of tape, they press the cut button and the tape is fed to the pre-determined length. In Automatic mode, the model #6180 will feed the tape to the pre-determined length and once removed from the machine, the next piece of tape is immediately fed. Small bench top design, unique cradle design that holds the roll of tape and allows for large roll capacity without any concern for core size and adjustable tape pressure to ensure positive tape feeding are all advantages of this machine.

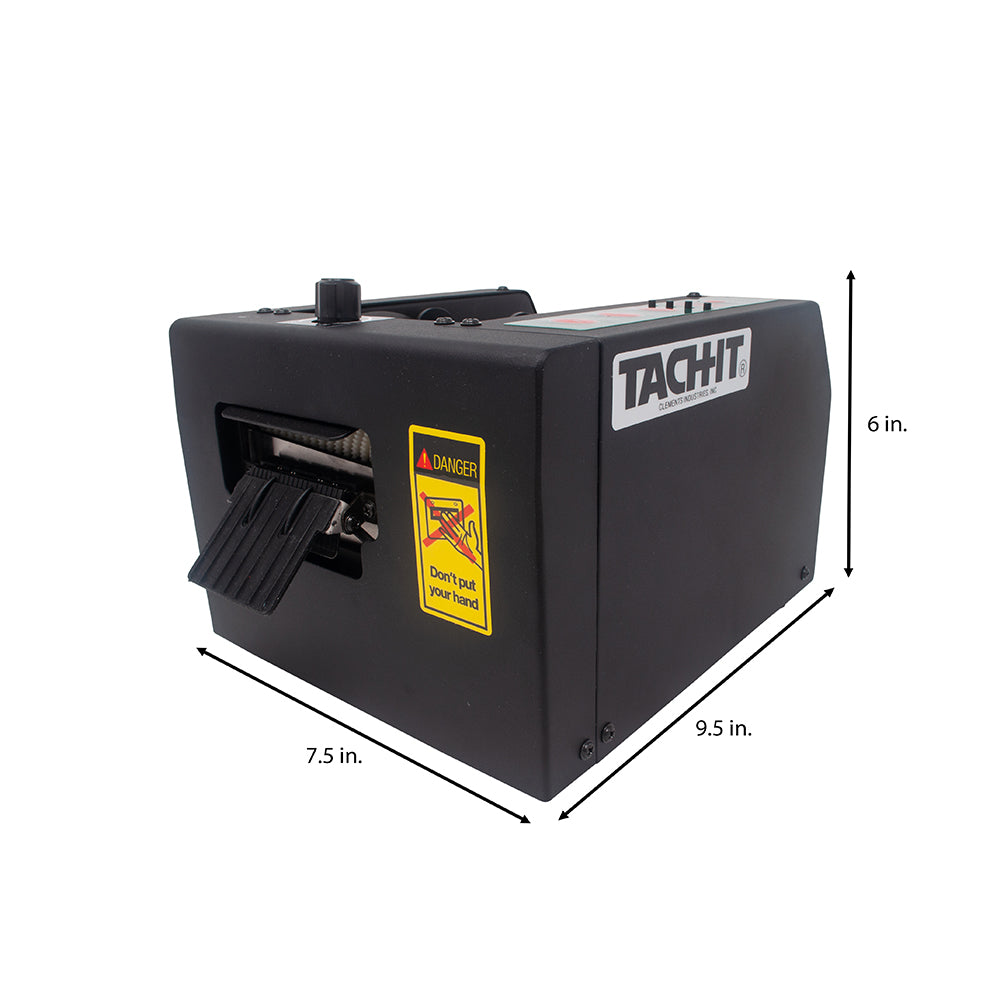

Machine: Length - 9 inch, Width - 7 1/2 inch, Height - 6 inch
Weight: 11 1/2 Lbs.
Tape Width: Maximum - 3 1/8 inch, Minimum: 3/4 inch
Tape length: Maximum - 39.3 inch, Minimum: 1 inch
Core Size: Not Applicable due to Cradle Design
Maximum Tape Roll Diameter: 12 inch (optional large diameter tape roll stand available)
Power: 110 Volt VAC
Speed: 7 inches per second.
